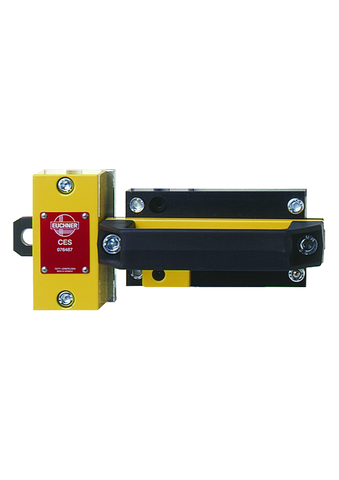

RIEGEL CES-A-A (Order no. 076487)

Bolt for read heads CES-A-LNA-...

  • Bolt for read heads CES-A-LNA-...
  • Steel bolt
  • For doors hinged on the left or right
  • Ball detent mechanism in closed position
  • Suitable for a door gap of approx. 15 mm
  • Protective cover for read head
RIEGEL CES-A-A (Order no. 076487)

Description

Combination options

Read heads CES-A-LNA-...

Scope of delivery

  • Bolt parts

  • CES actuator pre-assembled in the bolt tongue

To be ordered separately:

  • Read head

  • Evaluation unit CES-AZ...

Latching in closed position

Bolt latches in closed position and prevents unintentional opening of the bolt. Ball or spring detent mechanisms are opened by overcoming the spring force.

Door types and door hinges

Suitable for hinged or sliding doors Suitable for doors hinged on the left and right With door stop, door cannot be opened inwards.

Protective cover

The protective cover protects the read head from damage

Integrated lockout bar

With the aid of the integrated lockout bar, the bolt can be secured in the open position, e.g. using padlocks. It is possible to prevent people from being locked in the danger area unintentionally.

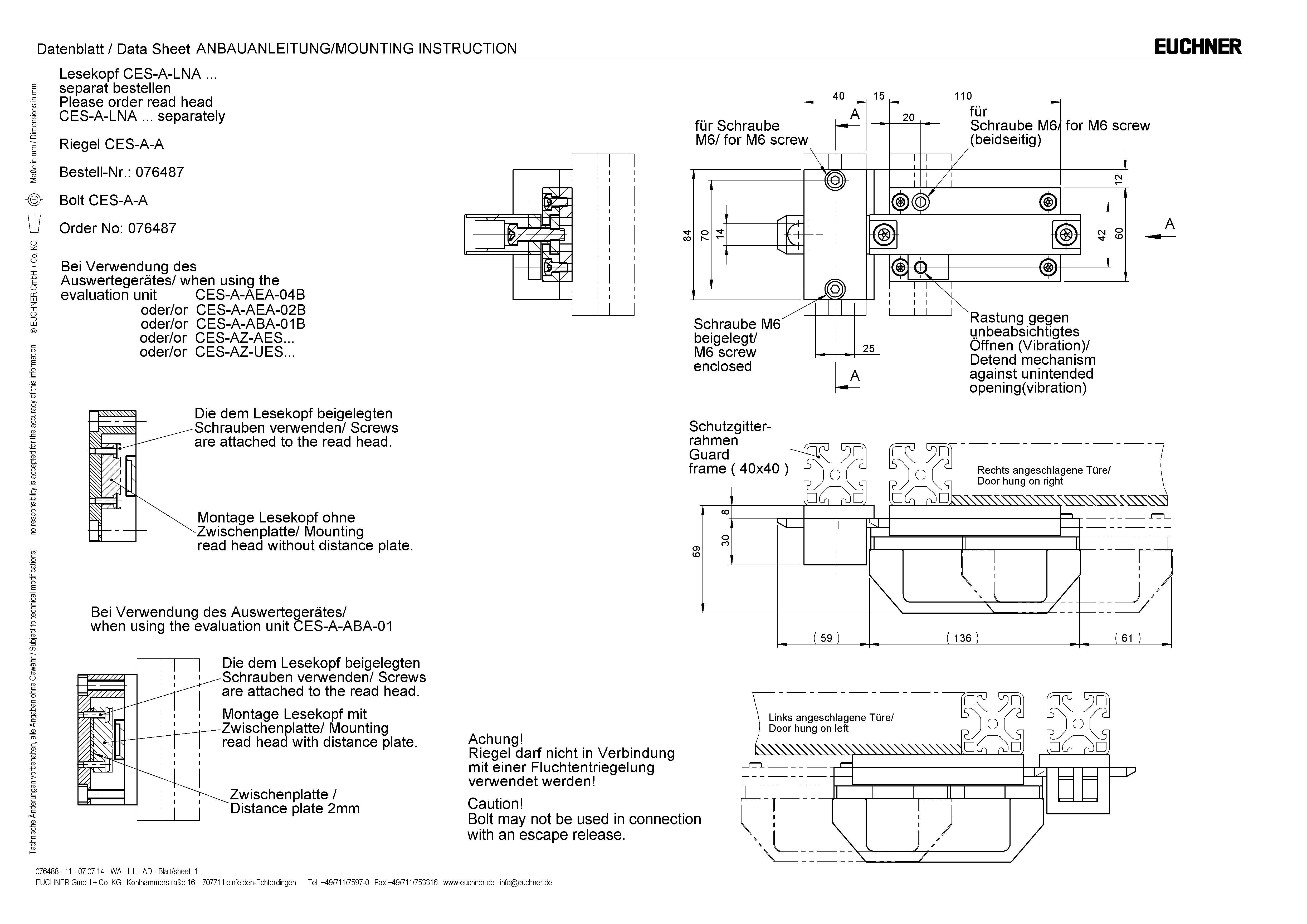

Dimension drawing
Dimension drawing

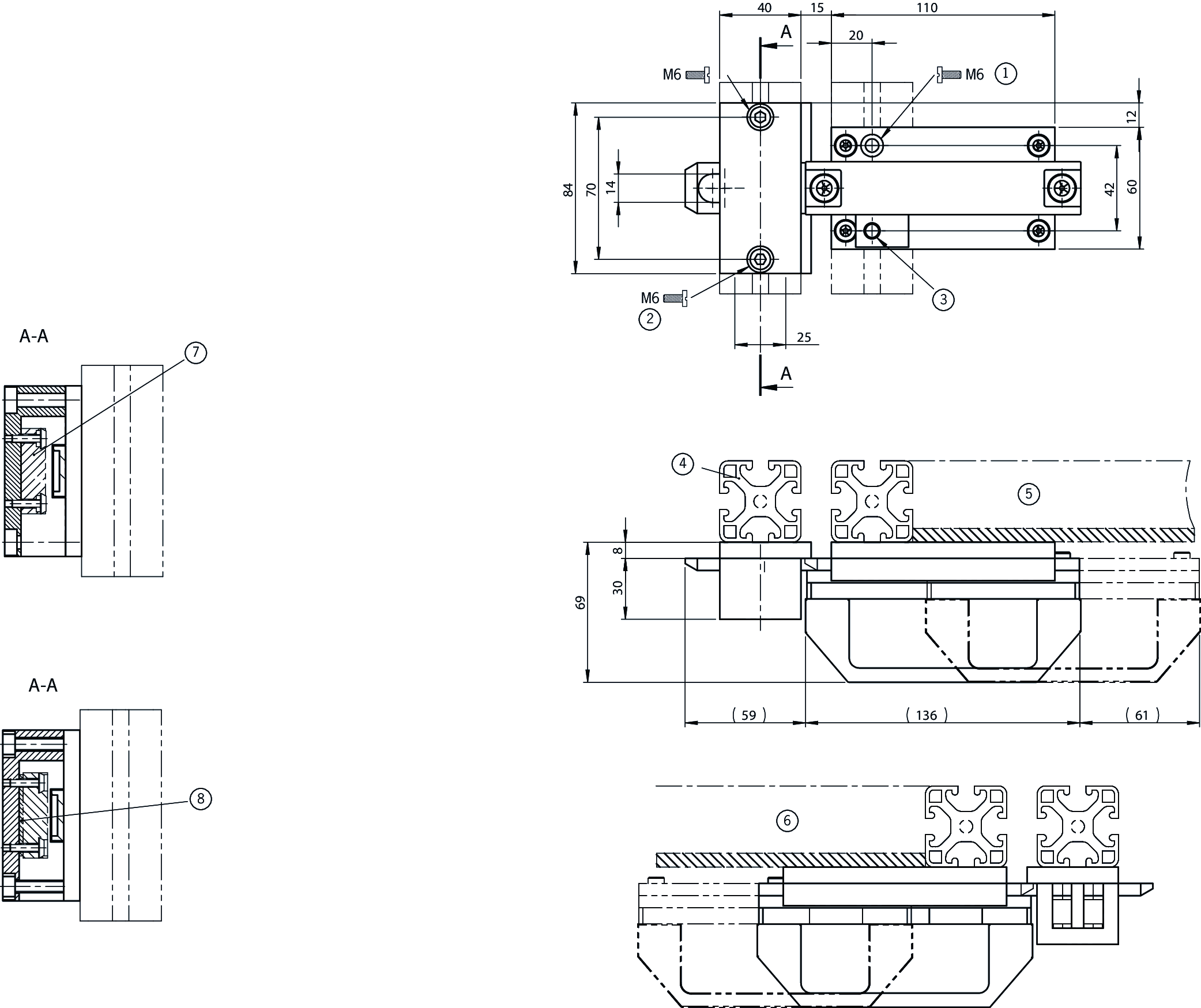

Dimensional drawings

Dimensional drawings
1for M6 screw (both sides)
2Screw M6 included
3detent mechanism against accidental opening (vibration)
4Safety guard frame (40x40)
5Door hinged on the right
6Door hinged on the left
7On the usage of the evaluation unit CES-A-AEA-04B, CES-A-AEA-02B, CES-A-ABA-01B, CES-AZ-AES..., CES-AZ-UES... the read head is mounted without an intermediate plate.
8On the usage of the evaluation unit CES-A-ABA-01 the read head is mounted with an intermediate plate.

Technical data

Mechanical values and environment

Approach direction A or C
Number of safety switches that can be mounted 1
Escape release None
Storage temperature -25 ... 70 °C
Material
Guide strips Plastic
Handle Plastic
Base plate Galvanized steel
Switch bracket Steel powder-coated

Miscellaneous

Detent mechanism closed position Ball detent mechanism

Downloads

Single Documents

Doc. no.
Version
Language
Size
Doc. no. 2530033
Safety Information for Bolts
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
04-03/24
Language
Size
0,2 MB
Doc. no. 2530033
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
04-03/24
Language
Size
0,2 MB
Doc. no. 2530033
Informação de segurança referente ao trinco
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Informazioni sulla sicurezza per il chiavistello
Doc. no.
2530033
Version
04-03/24
Language
Size
0,1 MB
Doc. no. 2530033
Bezpečnostní informace pro petlice
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Tolózár biztonsági információi
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Информация за безопасност за ригели
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sikkerhedsinformation for bolte
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Ohutusalane teave riivistuste kohta
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Turvallisuustietoja salvalle
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Πληροφορίες ασφαλείας για μάνδαλα
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sigurnosne informacije za brave
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Aizbīdņu drošības informācija
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Saugos informacija skląsčiui
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Veiligheidsinformatie voor grendels
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Sikkerhetsinformasjon for låser
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Informacje o bezpieczeństwie dotyczące użytkowania zasuw
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Säkerhetsinformation för regeln
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Varnostne informacije o zapahu
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Bezpečnostná informácia pre závory
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sürgüler için güvenlik bilgisi
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Informații de siguranță privind zăvoarele
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB

Other Documents

Ordering data

Ordernumber 076487
Item designation RIEGEL CES-A-A
Gross weight 1,488kg
Global Trade Item Number (GTIN) 4047048000131
Customs tariff number 83014090000
