Actuator CES-A-BDA
- For safety switch CES-A-.5...
- For CES-AZ safety systems in combination with the read heads CES-A- LNA and CES-A-LMN
- Round design, ø 20 mm
- For use in applications in very confined spaces
- Flush installation is permissible only in plastic
Description
Attention:The actuating range decreases in case of flush installation in metal. Flush installation in aluminum is not permissible.

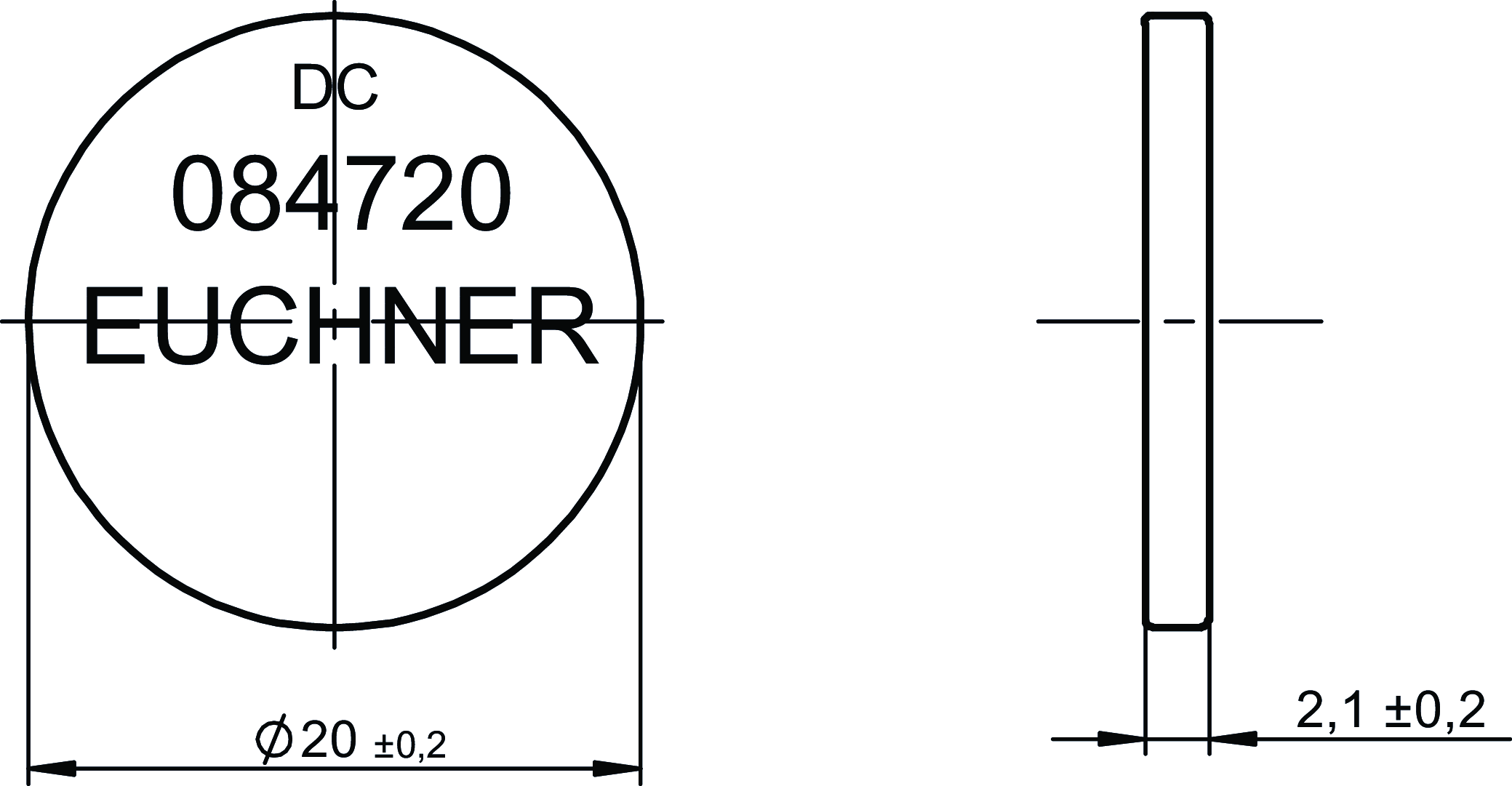

Dimensional drawings
Technical data
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
| Mounting type | bonding |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... 70 °C |
| Material | |
| Housing | Plastic (PC) |
Downloads
Single Documents
Data sheets
Data sheet
Doc. no.
Version
Language
Size
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Doc. no.
2136381
Version
01
Language
Size
0,6 MB
Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データ シート
데이터 시트
Datový list
Doc. no.
2136381
Version
01
Language
Size
0,3 MB
Other Documents
Approvals and certificates
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,2 MB
Ordering data
| Ordernumber | 084720 |

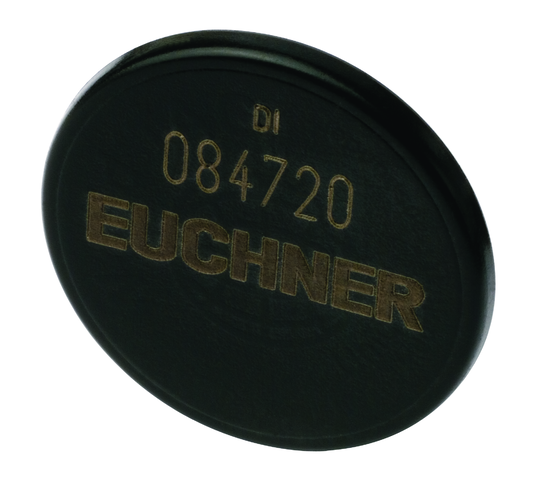

| Item designation | CES-A-BDA-20 |
| Gross weight | 0,009kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Betätiger für sicherheitsgerichteten Näherungsschalter |
