Lockout bar NX/TX
- Prevents unintentional closing of the door
- Can be secured with padlocks
Description
With the safety door open, it can be slid into the actuating head on a switch type 2 (NX/TX) instead of an actuator. Removal can be prevented using a commercially available padlock. For the protection of persons in areas with a possible hazard.

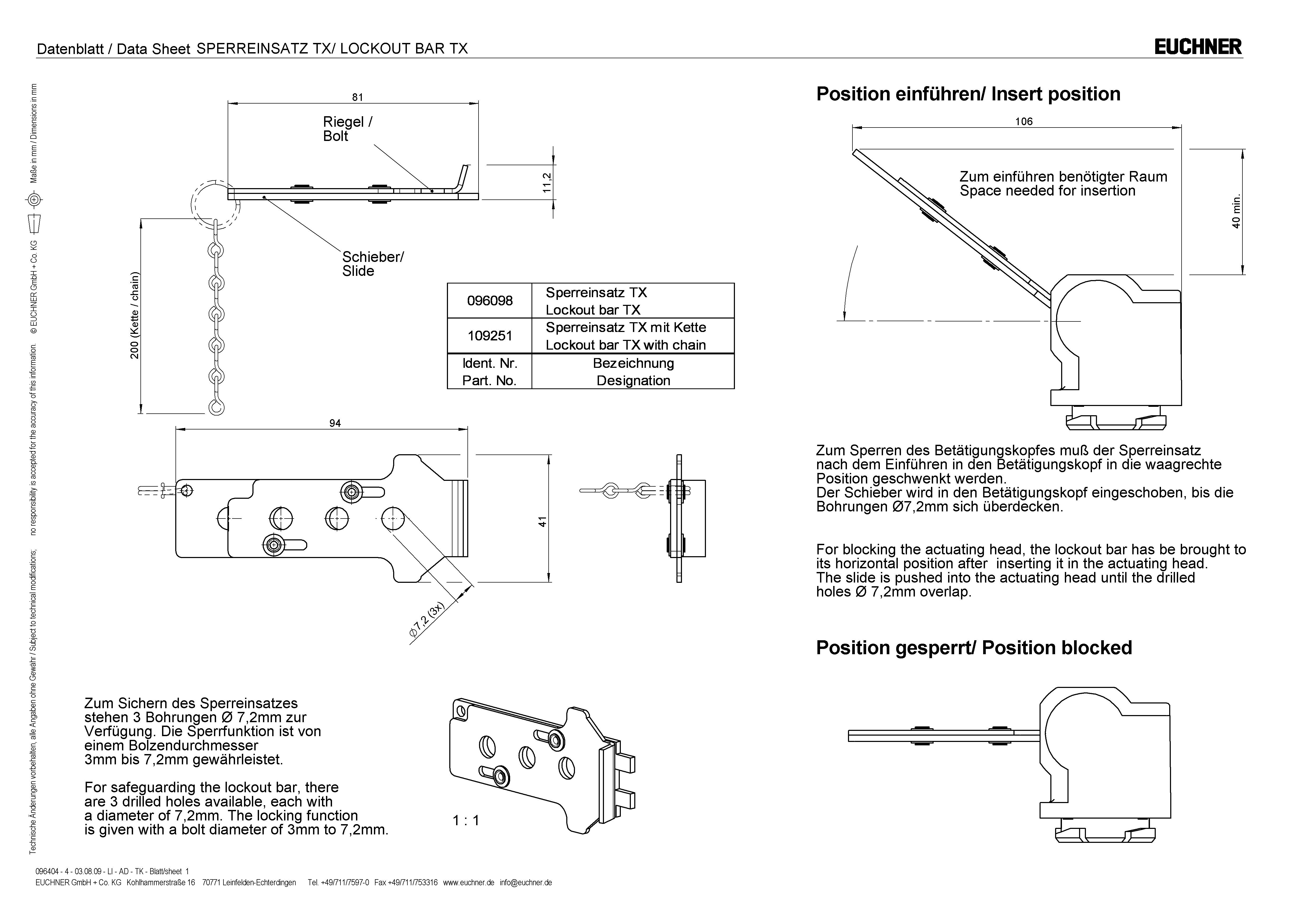

Dimensional drawings
Technical data
Mechanical values and environment
| Number of bores | 3 |
| Pin diameter | 3 ... 7.2 mm |
| Storage temperature | -25 ... 70 °C |
| Material | Stainless steel |
Downloads
Single Documents
Other Documents
Sales documents
Safety Switches with Metal Housing
Doc. no.
Version
Language
Size
Safety Switches with Metal Housing
Doc. no.
100369
Version
11-03/18
Language
Size
7,8 MB
Interrupteurs de sécurité avec boîtier métallique
Doc. no.
100676
Version
11-03/18
Language
Size
7,9 MB
Interruptores de seguridad con carcasa metálica
Doc. no.
104856
Version
11-03/18
Language
Size
14,0 MB
Sicherheitsschalter mit Metallgehäuse
Doc. no.
100319
Version
11-03/18
Language
Size
7,9 MB
金属壳体 的安全开关
Doc. no.
102453
Version
11-03/18
Language
Size
8,2 MB
Bezpečnostní spínače s kovovým pouzdrem
Doc. no.
121650
Version
11-03/18
Language
Size
7,8 MB
Ordering data
| Ordernumber | 096098 |
| Item designation | SPERREINSATZ TX |
| Gross weight | 0,053kg |
| Customs tariff number | 85389099990 |
