Lockout bar NP/GP/TP
- Prevents unintentional closing of the door
- Can be secured with padlocks
Description
With the safety door open, can be slid into the actuating head on a switch type 2 (NP/GP/TP) instead of an actuator. Removal can be prevented using a commercially available padlock (max. 3 ea.). For the protection of persons in areas with a possible hazard.

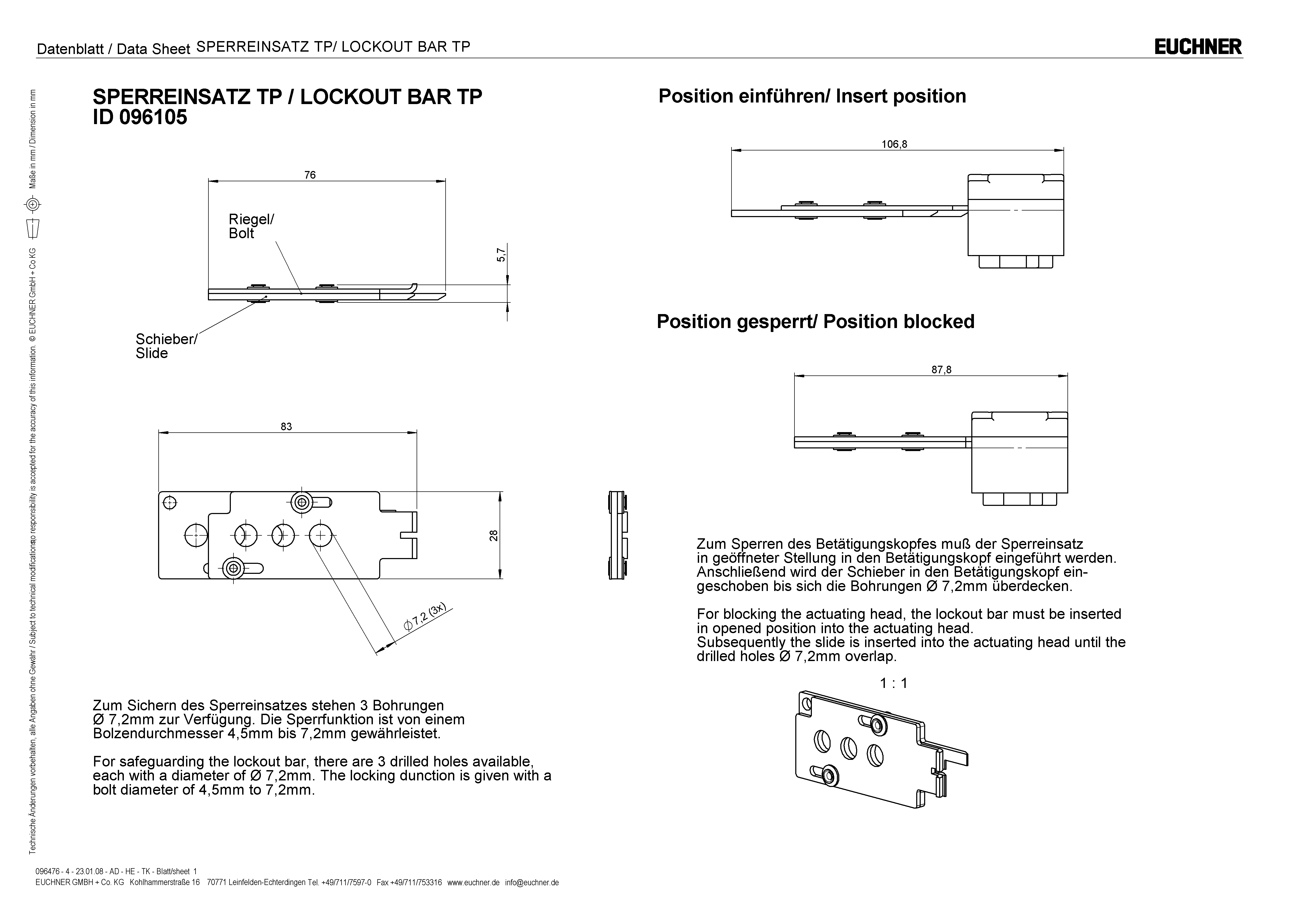

Dimensional drawings
Technical data
Mechanical values and environment
| Number of bores | 3 |
| Pin diameter | 4.5 ... 7.2 mm |
| Storage temperature | -25 ... 70 °C |
| Material | Stainless steel |
Downloads
Single Documents
Other Documents
Sales documents
Safety Switches with Plastic Housing
Doc. no.
Version
Language
Size
Safety Switches with Plastic Housing
Doc. no.
096956
Version
11-03/18
Language
Size
6,5 MB
Interrupteurs de sécurité avec boîtier plastique
Doc. no.
100677
Version
11-03/18
Language
Size
6,6 MB
Interruptores de seguridad con carcasa plástica
Doc. no.
104855
Version
11-03/18
Language
Size
6,6 MB
Sicherheitsschalter mit Kunststoffgehäuse
Doc. no.
096955
Version
11-03/18
Language
Size
6,6 MB
塑料壳体 的安全开关
Doc. no.
116243
Version
11-03/18
Language
Size
6,1 MB
Bezpečnostní spínače s plastovým pouzdrem
Doc. no.
121649
Version
11-03/18
Language
Size
6,5 MB
Ordering data
| Ordernumber | 096105 |
| Item designation | SPERREINSATZ TP |
| Gross weight | 0,044kg |
| Customs tariff number | 85389099990 |
