SCHLUESSEL-HILFSENTRIEGELUNG (Order no. 098850)

Auxiliary key release for read head/switch CET

  • Identical locking
  • Key removable in “unlocked” and “locked” positions
SCHLUESSEL-HILFSENTRIEGELUNG (Order no. 098850)

Description

The auxiliary key release is used in combination with read head/switch CET. It enables authorized personnel to actuate the auxiliary release using the related key. The unlocking mechanism holds the solenoid in the “unlocked” position. A screw is used to fix the lock to the cover of the read head/switch CET (over the auxiliary release). The lock is identical locking.

  • Order read head/switch CET separately
  • 2 keys are included
  • Every read head/switch in the CET series can be upgraded with the auxiliary key release

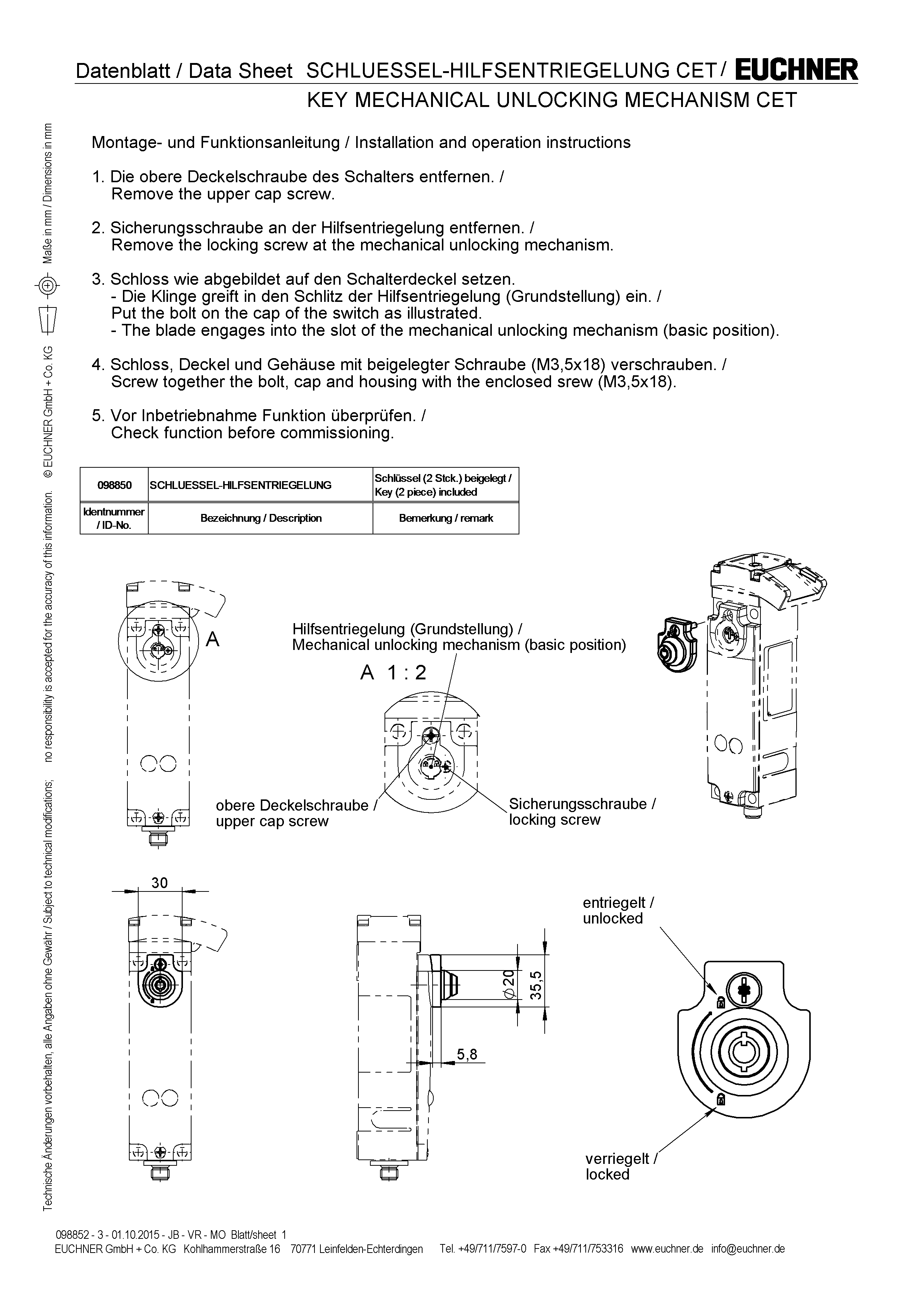

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material
Lock Die-cast zinc, chrome plated
Flange Plastic PA6.6

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 098850
Item designation SCHLUESSEL-HILFSENTRIEGELUNG
Gross weight 0,03kg
Customs tariff number 85389099990
