SCHLOSS STA GLEICHSCHLIESSEND (Order no. 105350)

Lock for auxiliary release for safety switch STA

  • Identical locking
  • Key removable in both positions
SCHLOSS STA GLEICHSCHLIESSEND (Order no. 105350)

Description

The lock is used in combination with safety switch STA. The auxiliary key release enables authorized personnel to actuate the auxiliary release using the related key. The unlocking mechanism holds the solenoid in the “unlocked” position. 2 screws are used to fix the lock to the cover of the safety switch (above the auxiliary release).

  • Order safety switch STA separately
  • 2 keys are included
  • Every safety switch of series STA can be upgraded to include a lock

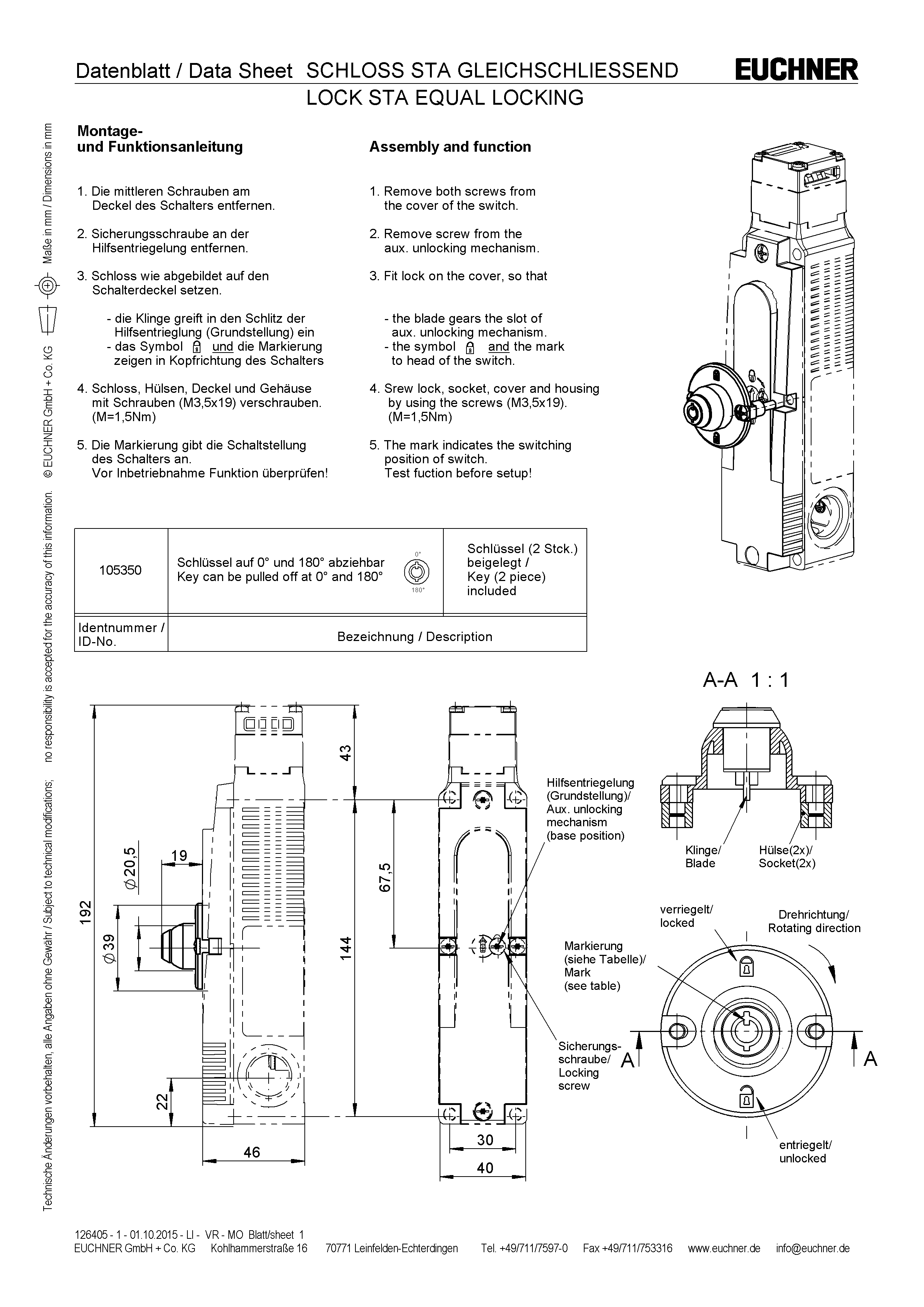

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Auxiliary release (basic position)
2Locking screw
3Position marking
4locked
5Blade
6Sleeve (2x)
7Released

Technical data

Mechanical values and environment

Removal position two (0° and 180°)
Storage temperature -25 ... 70 °C
Closing type identical locking
Material Plastic (Lock: metal)

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 105350
Item designation SCHLOSS STA GLEICHSCHLIESSEND
Gross weight 0,37kg
Customs tariff number 85389099990
