BETAETIGER-S-WT-LN-C2115 (Order no. 105809)

Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM for insertion funnel

  • Two stainless-steel safety screws per actuator
  • Actuator with rubber bush
  • Minimum door radius 300 mm
BETAETIGER-S-WT-LN-C2115 (Order no. 105809)

Description

Notice

S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.

Bent actuator

Suitable for a maximum tensile force of 1000 N.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing

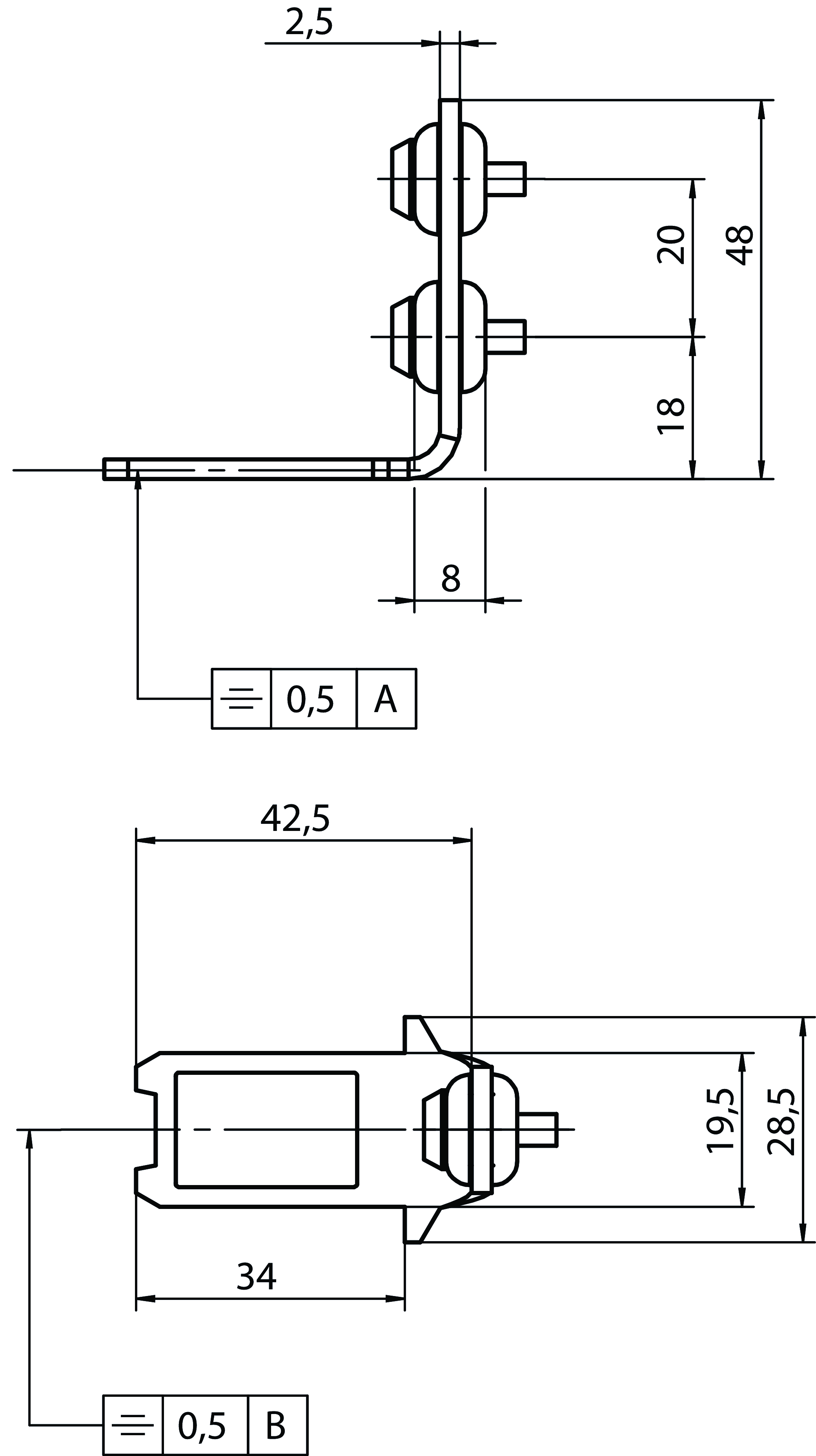

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Overtravel max. 5 mm
Door radius min. 300 mm
Material
Actuator Stainless steel
Rubber bush NBR
Screw Stainless steel
Locking force Fmax max. 1000 N reduced locking force by actuator

Miscellaneous

C number
C2115 Installation dimensions as for TP actuator
Usability of insertion funnel Yes

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 105809
Item designation BETAETIGER-S-WT-LN-C2115
Gross weight 0,031kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Betätiger für sicherheitsgerichteten Positionsschalter
