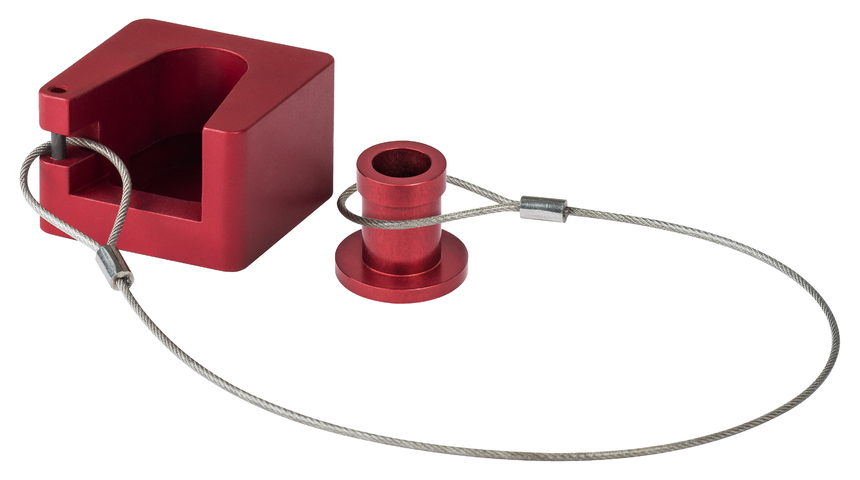

AE-L-CET-122609 (Order no. 122609)

Lockout bar for CET actuator

  • Prevents unintentional closing of the door
  • Can be secured with padlocks
  • Not suitable in combination with cover AM-C for actuator CET
AE-L-CET-122609 (Order no. 122609)

Description

The lockout bar can be used to prevent maintenance personnel from being unintentionally locked in the danger zone, for example. The lockout bar is mounted on the CET actuator when the guard is open, and it can be secured with up to 2 padlocks.

Dimension drawing
Dimension drawing

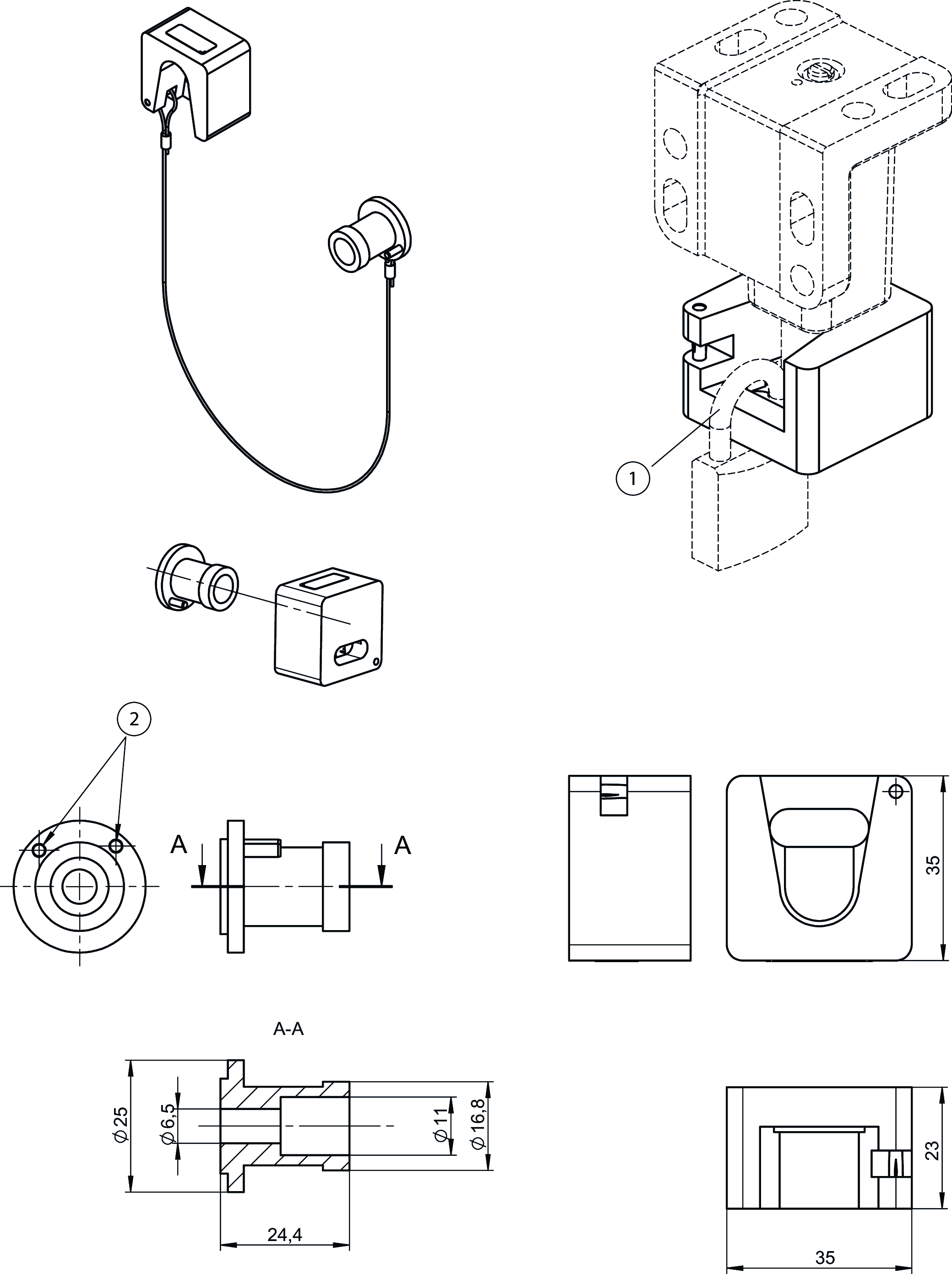

Dimensional drawings

Dimensional drawings
1Shackle diameter: 5 mm – 6 mm
2Protection against twisting for lockout bar on holder

Technical data

Mechanical values and environment

Dimensions 35x35x23
Storage temperature -25 ... 70 °C
Material Aluminum, red anodized

Miscellaneous

Additional information
Shackle diameter 5 mm - 6 mm
2 padlocks can be attached
Rope length Approx. 250 mm

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 122609
Item designation AE-L-CET-122609
Gross weight 0,056kg
Customs tariff number 85389099990
