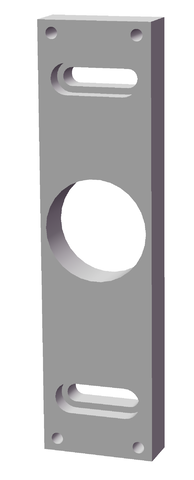

Mounting plates AM-P for safety switch CTP/CTA
- For vertical and horizontal mounting of safety switch CTP/CTA
Description
The mounting plates are used for mounting safety switches CTP on guards. The safety switches can be attached vertically or horizontally.

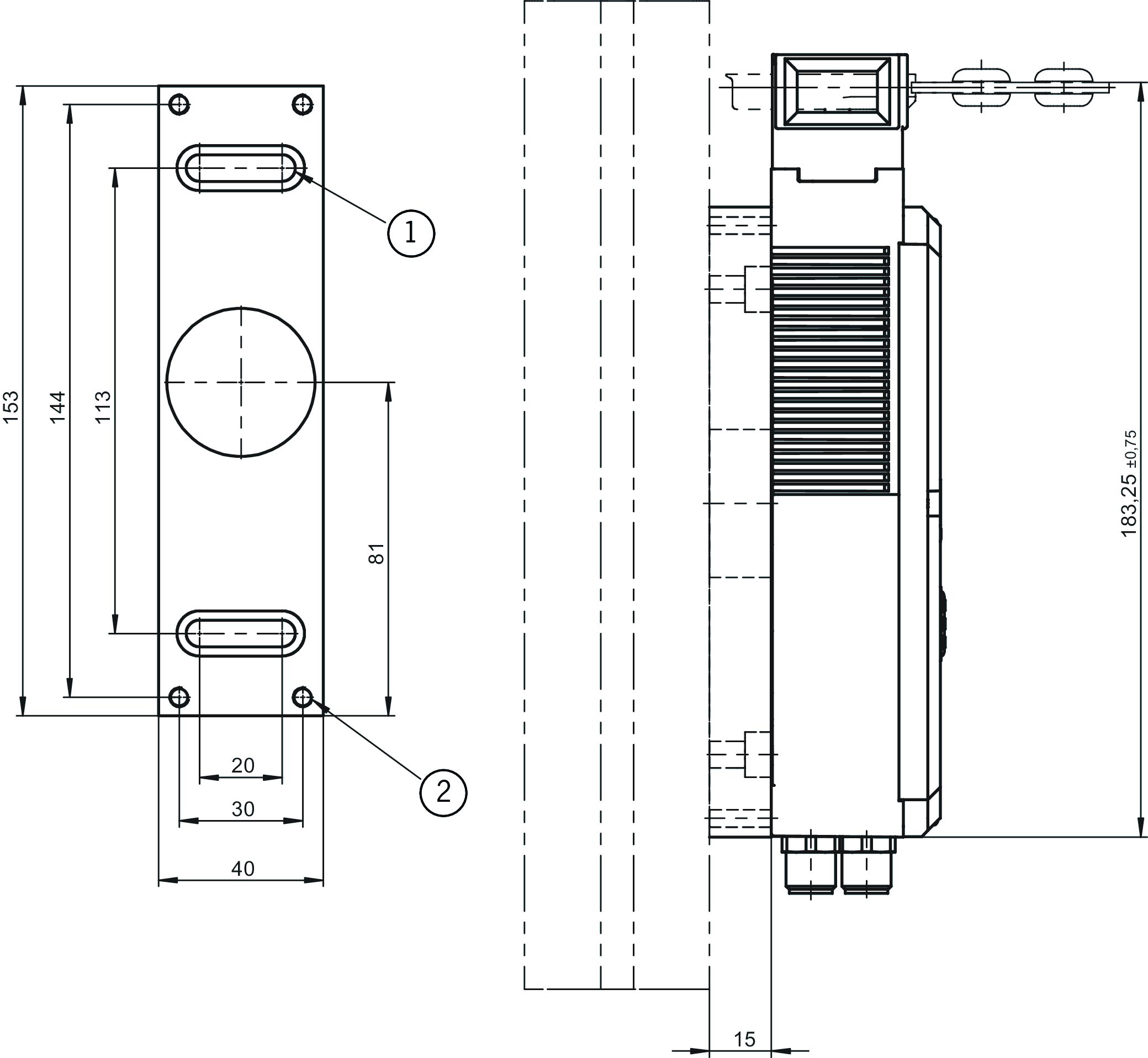

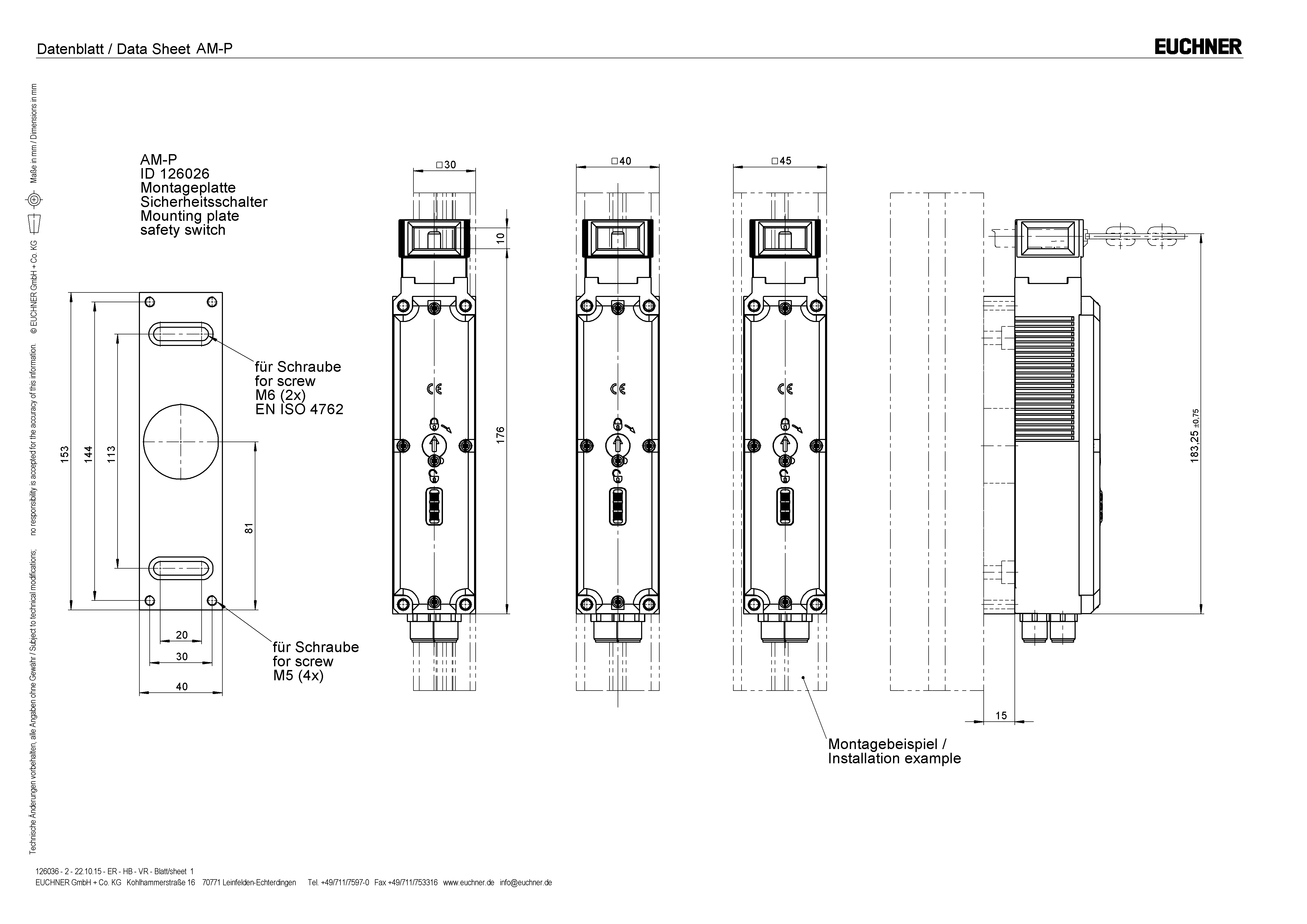

Dimensional drawings
| 1 | For screw M6 (2x) EN ISO 4762 |
| 2 | For screw M5 (4x) |
Technical data
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
Miscellaneous
| Compatibility | for safety switch TP/TP-K/STP/CTP |
