AM-B-126230 (Order no. 126230)

Mounting bracket for actuator CEM-C40

  • Mounting bracket for actuator CEM-C40
  • Suitable for mounting on aluminum profiles of width 30-45 mm
AM-B-126230 (Order no. 126230)

Description

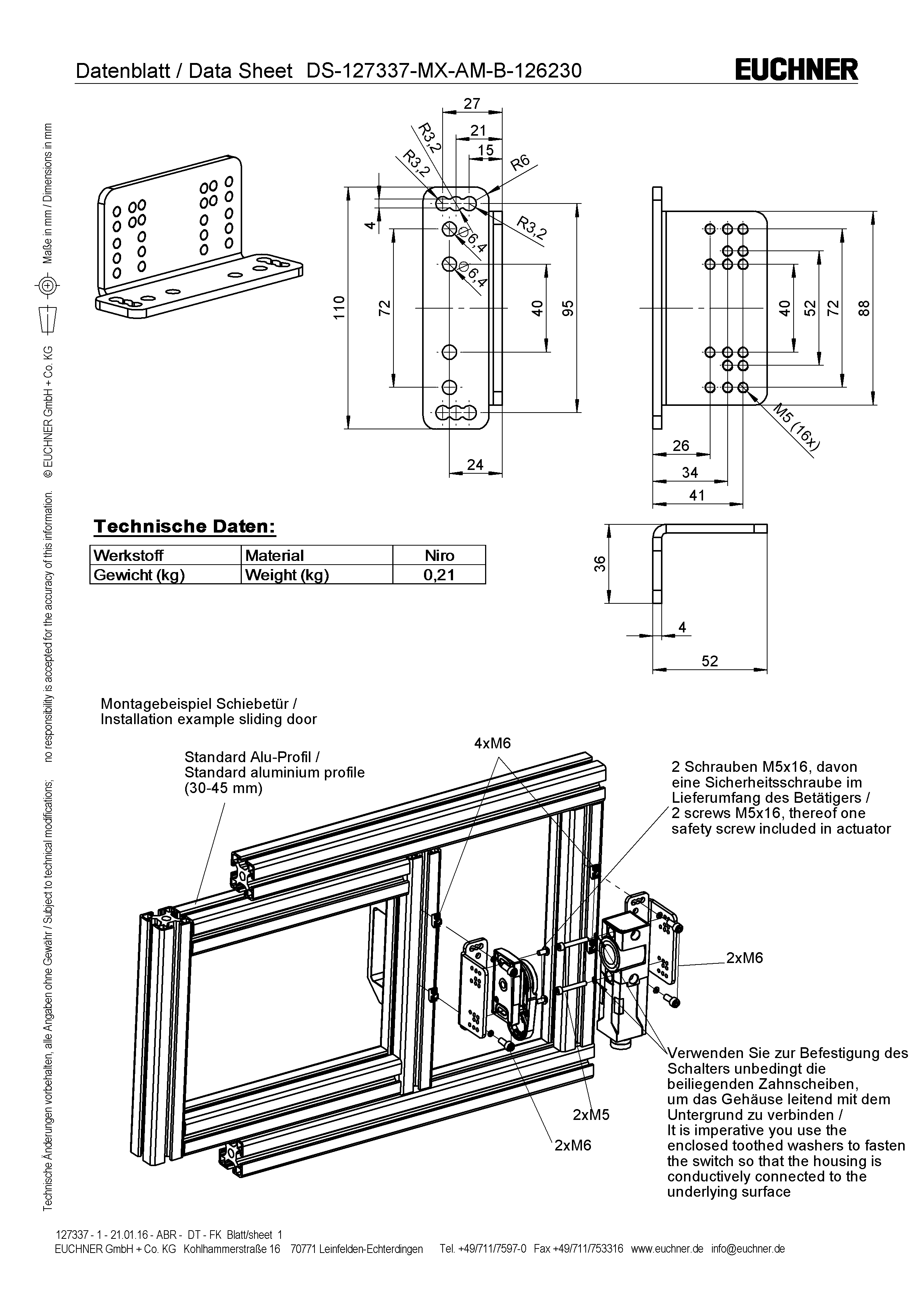

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings
12 M5x16 screws, including one safety screw in the actuator’s scope of delivery
2It is imperative to use the enclosed toothed washers to fasten the switch so that the housing is conductively connected to the underlying surface.

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material STAINLESS STEEL

Components included in the set

Included accessories MOUNTING BRACKET CEM-C40

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 126230
Item designation AM-B-126230
Gross weight 0,24kg
Customs tariff number 85389099990
