AM-P-126399 (Order no. 126399)

Mounting plate EM-P switch for safety switch CET

  • Mounting plate for CET read heads/switches
  • Direct mounting on aluminum profiles of width 30/40/50 mm
  • Suitable for the mounting plates AM-P-126400 and AM-P-126398
AM-P-126399 (Order no. 126399)

Description

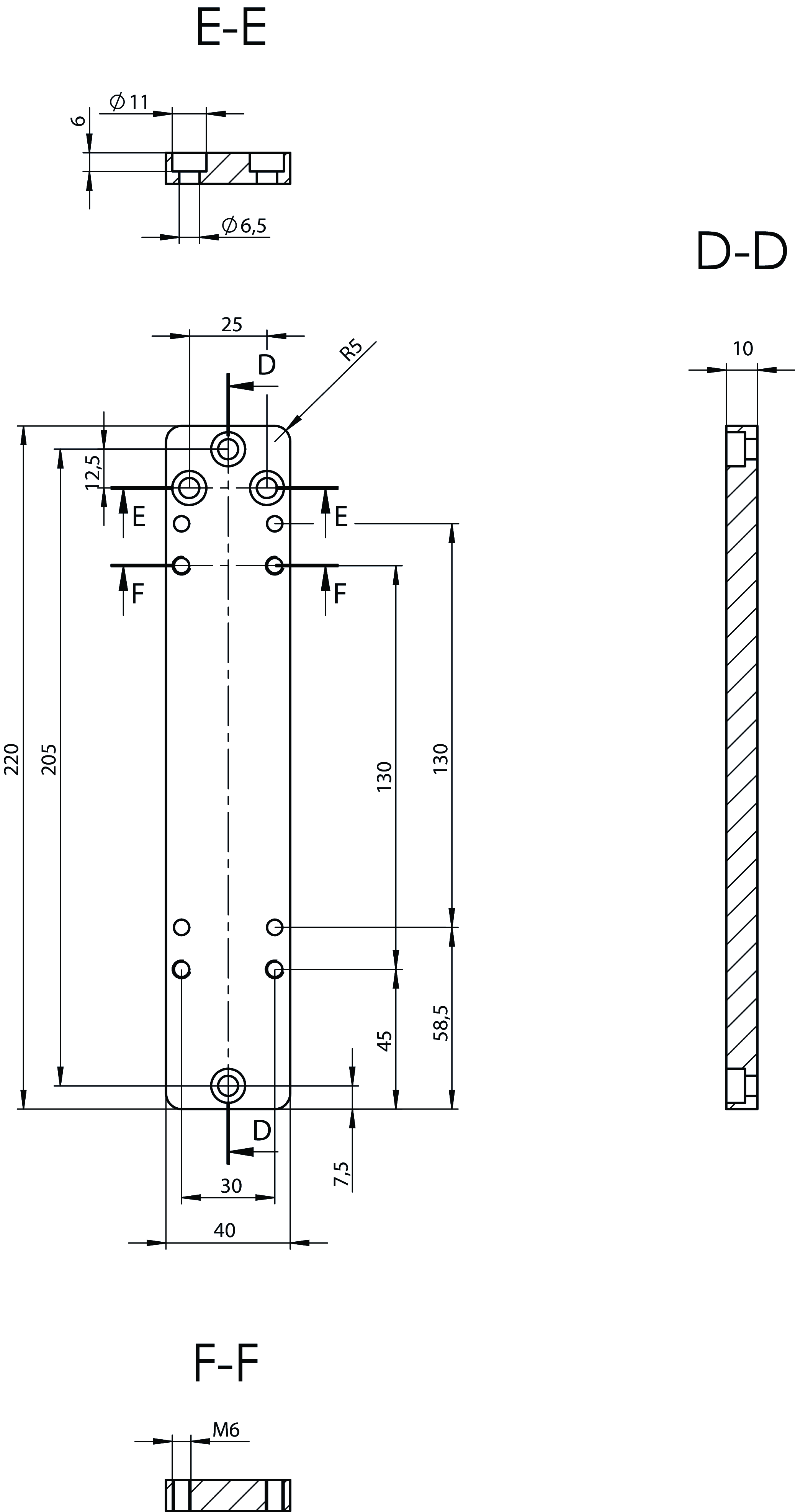

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

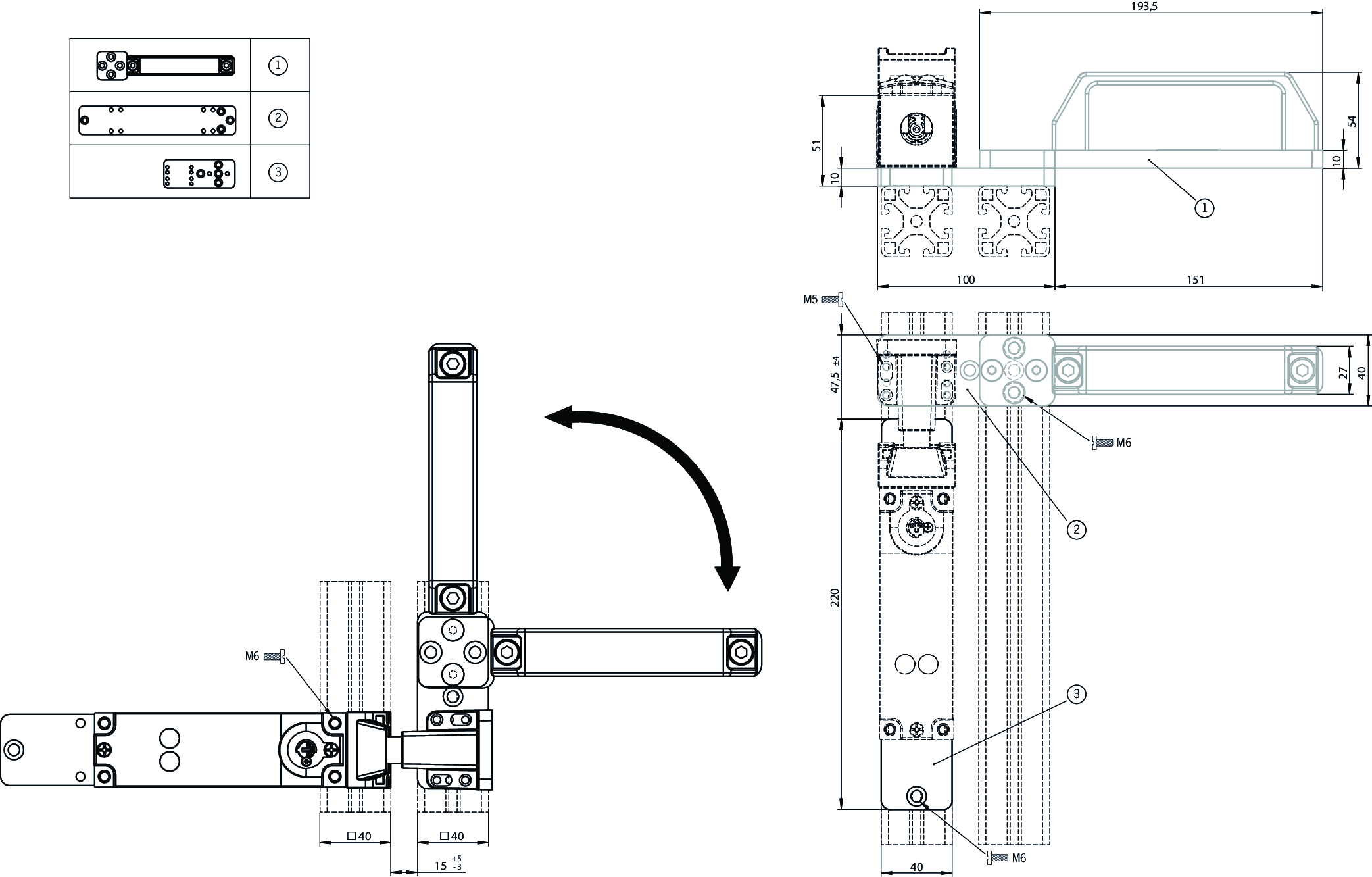

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings
1AM-P-126398 mounting plate with handle
2AM-P-126400 mounting plate CET actuator
3AM-P-126399 mounting plate for CET read head/switch

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material Aluminum

Miscellaneous

Compatibility CET

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 126399
Item designation AM-P-126399
Gross weight 0,36kg
Customs tariff number 85389099990
