A-C-H-G-LS-EX-136826 (Order no. 136826)

Straight actuator for safety switch CTP-EX, ATEX

  • ATEX version
  • Suitable for use in zones 2 and 22 (gases and dusts)
  • Straight actuator
  • Two safety screws included
A-C-H-G-LS-EX-136826 (Order no. 136826)

Description

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 300 mm. Safety screws prevent unscrewing of the actuators.

The safety screws included can be inserted with a normal tool, but cannot be removed again.

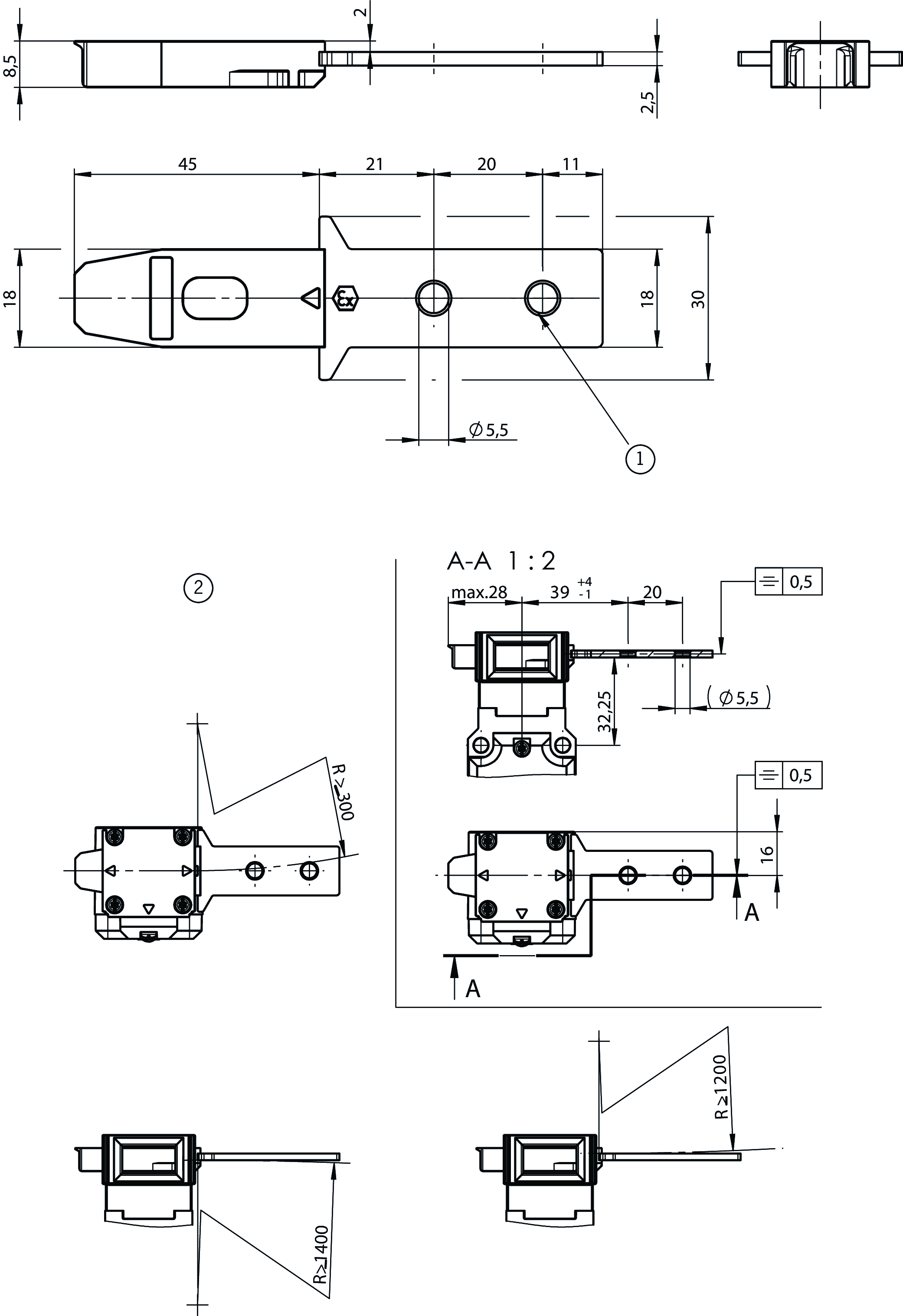

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
12x non-removable screws M5 included
2Min. door radii

Technical data

Approvals

c_UL_us_E155795_3/11

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Storage temperature -25 ... 70 °C
Mechanical life 1 x 10⁶
Overtravel 5 mm
Degree of protection IP65/IP66
Ambient temperature -20 ... 55 °C
Material
Mounting Stainless steel
Encapsulation fiber reinforced plastic, red
Locking force Fmax 3900 N
Locking force FZh 3000 N (Fzh = Fmax/1.3)

Miscellaneous

Explosion protection in accordance with ATEX Directive 2024/34/EU II3G Ex ic IIC T4 Gc / II3D Ex ic IIIC T110°C Dc X

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 136826
Item designation A-C-H-G-LS-EX-136826
Gross weight 0,038kg
Customs tariff number 85389099990
ECLASS 27-27-24-04 Betätiger für sicherheitsgerichteten Näherungsschalter
