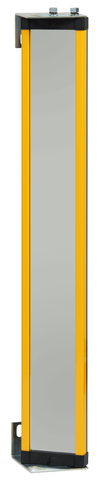

Deflection mirror for protective field height 1,060 mm or 4 beam light grids
- Deflection mirror with adjustable holder for light grids and light curtains LCA
- For protective field height 1,060 mm or 4 beams
Technical data
Mechanical values and environment
| Dimensions | 1230x110x40 mm |
| Number of mirrors | 1 |
| Height of the protective field | 1060 mm (or 4 beams) |
| Storage temperature | -25 ... 70 °C |
| optical power reduction | 15 % |
