MGB2-H-BA1A6-R-157369 (Order no. 157369)

Handle module MGB2-H... (door handle, with automatic lockout mechanism, door hinge on right)

  • Intelligent bolt tongue
  • Fold-out lockout mechanism
  • Second automatically extending lockout mechanism
  • Door handle
  • Mounting plate
  • Adjustable door hinge; factory setting: right
MGB2-H-BA1A6-R-157369 (Order no. 157369)

Description

Bolt tongue

The bolt tongue is safely detected by a transponder as soon as it is inserted into the evaluation module.

Lockout mechanism (automatically extending and fold-out)

For cleaning and service on the machine, the bolt tongue can be locked with max. 3 padlocks using the fold-out lockout mechanism. In this way the operation of the handle is prevented in the locked state. Additionally, the optional lockout mechanism that extends automatically on the actuation of the handle can be used for 3 more padlocks.

Door handle

The MGB2 has a robust door handle that can be rotated in 90° steps to suit all installations. The actuating direction can be changed very easily for doors hinged on the left or right.

Door knob

As an alternative to the door handle, the handle module can also be equipped or retrofitted with a door knob.

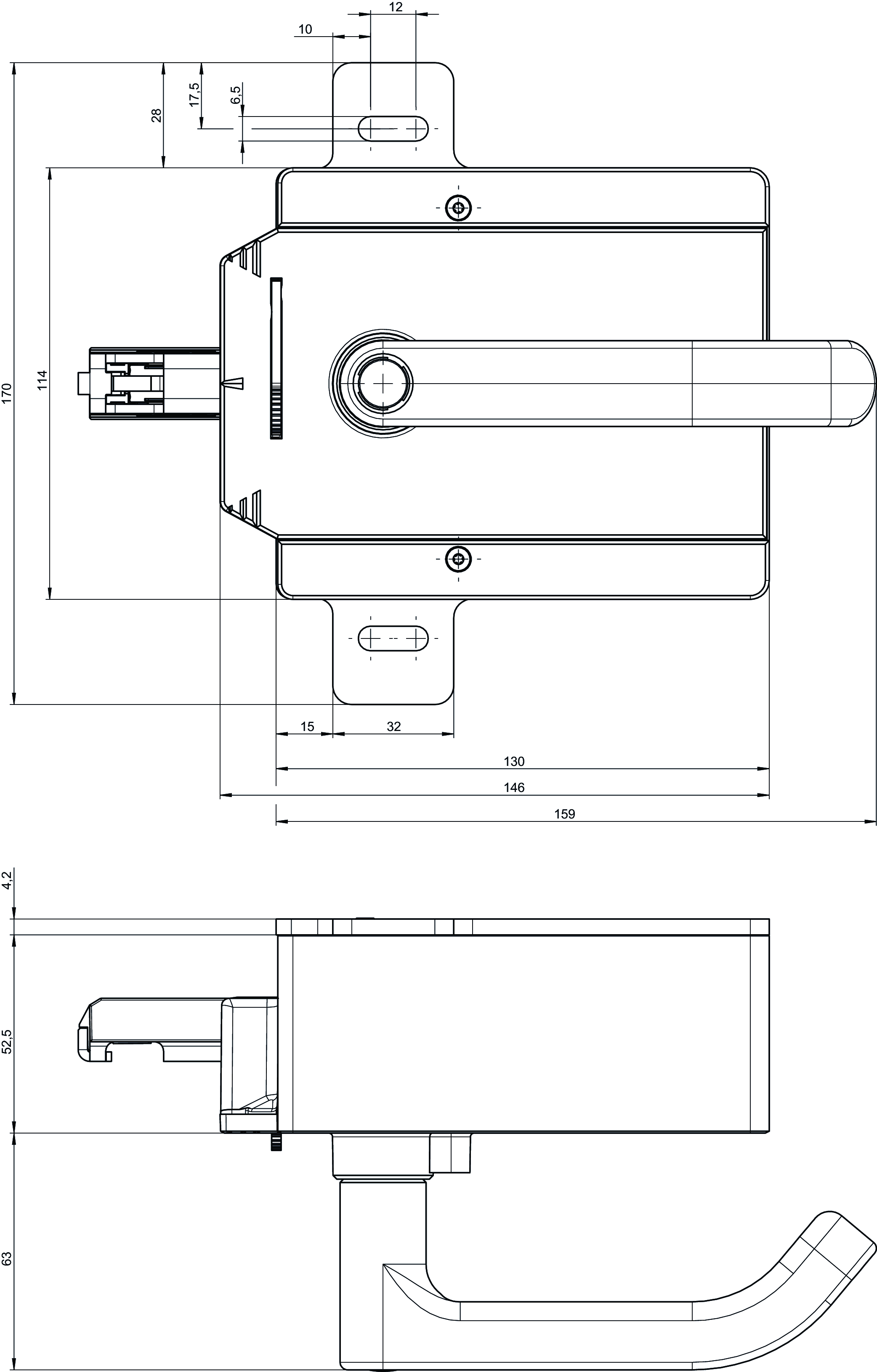

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Approvals

TÜV Süd München_Z10 040393 0028 Rev.04

Mechanical values and environment

Installation orientation Door hinge DIN right
Storage temperature -30 ... 70 °C
Degree of protection IP65
Ambient temperature -30 ... 55 °C
Material
Housing Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Miscellaneous

Additional feature
with mounting plate
with automatic lockout mechanism

Accessories

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 157369
Item designation MGB2-H-BA1A6-R-157369
Gross weight 1,69kg
Customs tariff number 85365019000
ECLASS 27-27-24-04 Betätiger für sicherheitsgerichteten Näherungsschalter
