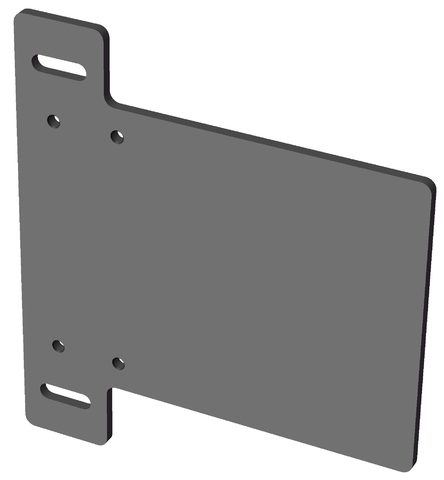

AM-P-L-161315 (Order no. 161315)

Mounting plate for evaluation modules MGB2-L/I

  • For evaluation modules MGB2-L/I
  • Easy and quick mounting (only two screws required)
  • Quick module replacement
  • Steel, powder coated
  • Suitable for doors hinged on the right and left
  • Incl. screw set
AM-P-L-161315 (Order no. 161315)

Description

Mounting plate for evaluation module

Suitable for all interlocking or locking modules in the system family MGB2. 2 screws are sufficient for fastening the mounting plates.

Important: Only use if the handle module is also fastened to a mounting plate.

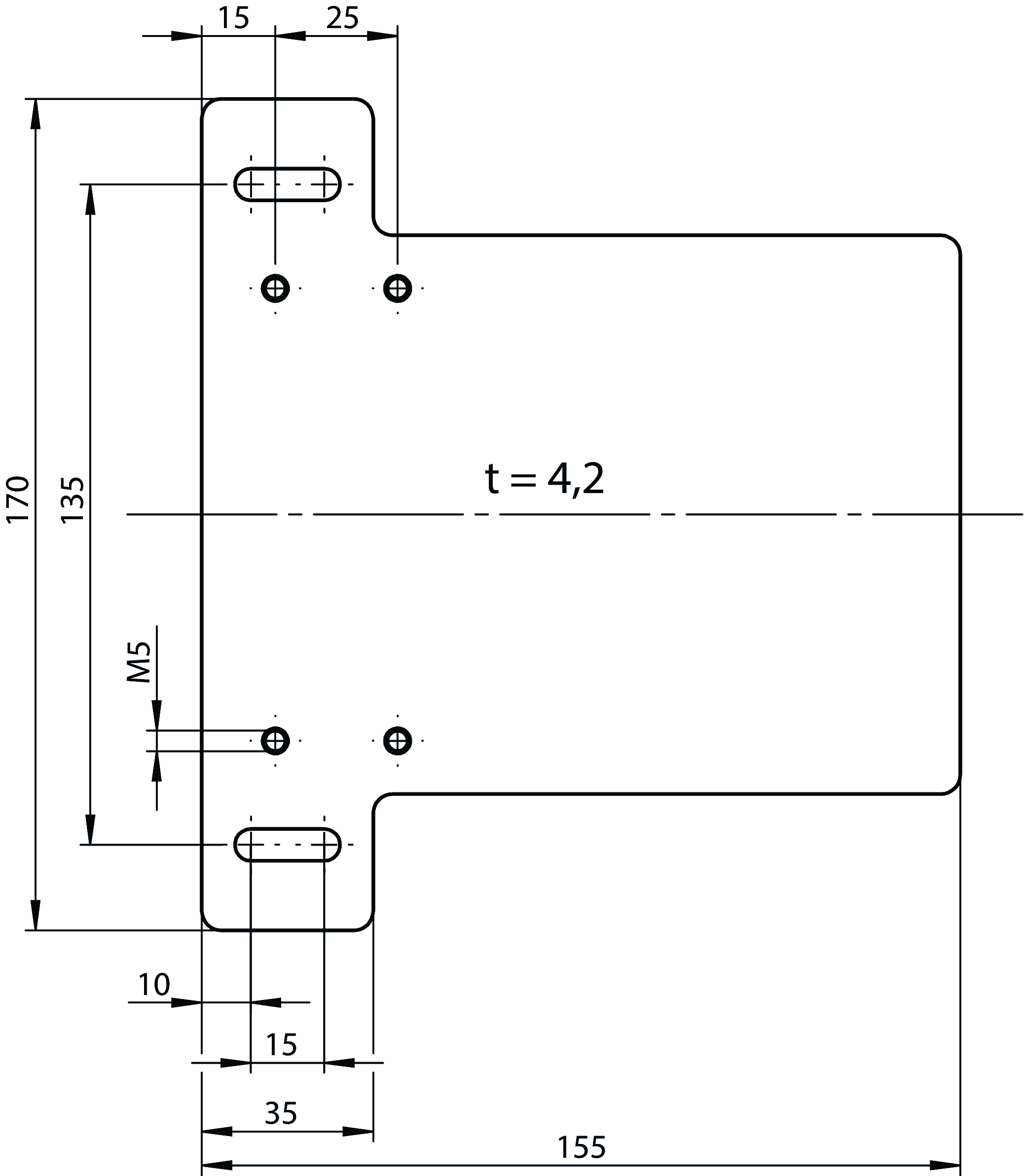

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material Steel, powder coated

Miscellaneous

Color black
Compatibility For devices MGB2-L
Additional feature incl. fixing material for the modules on the mounting plate

Downloads

Ordering data

Ordernumber 161315
Item designation AM-P-L-161315
Gross weight 0,62kg
Customs tariff number 85365019000
