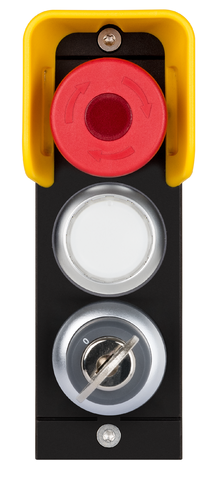

MSM-1-P-CS-B0L0D1-I1-167100 (Order no. 167100)

Submodule MSM-1-P... (emergency stop, signal indicator, key-operated rotary switch)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • Illuminated emergency stop according to ISO 13850
  • White signal indicator
  • SSG10 Key-operated rotary switch 1 x 40° Form V, pushbuttons
MSM-1-P-CS-B0L0D1-I1-167100 (Order no. 167100)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram<br>Wiring diagram for connection to MGB2 Classic
Wiring diagram
Wiring diagram for connection to MGB2 Classic
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

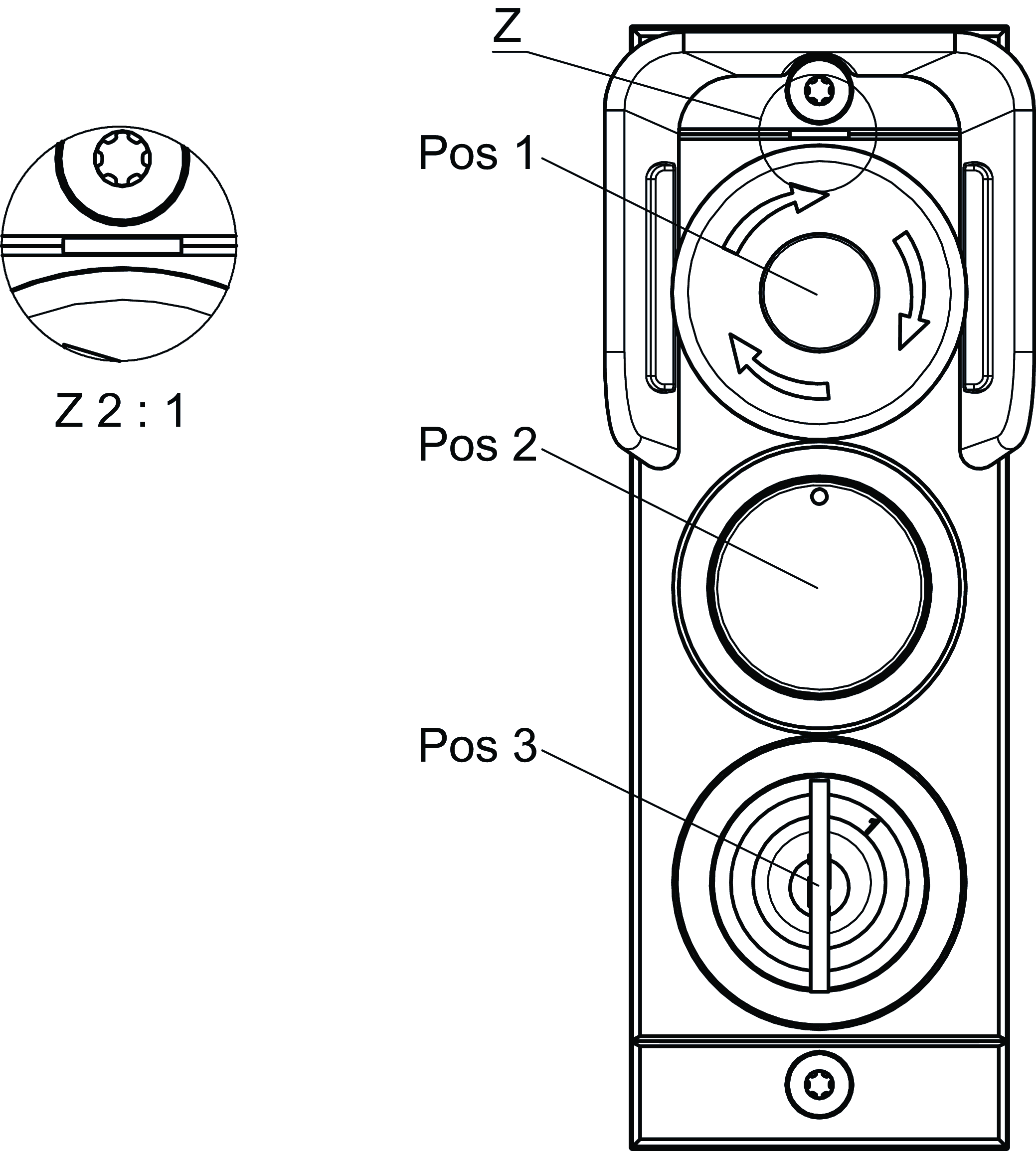

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings
Pos 1Emergency stop according to ISO 13850, illuminated
Pos 2White signal indicator
Pos 3Key-operated rotary switch SSG 10, 1 x 40°, form V, spring return
Zmarks orientation of item 1

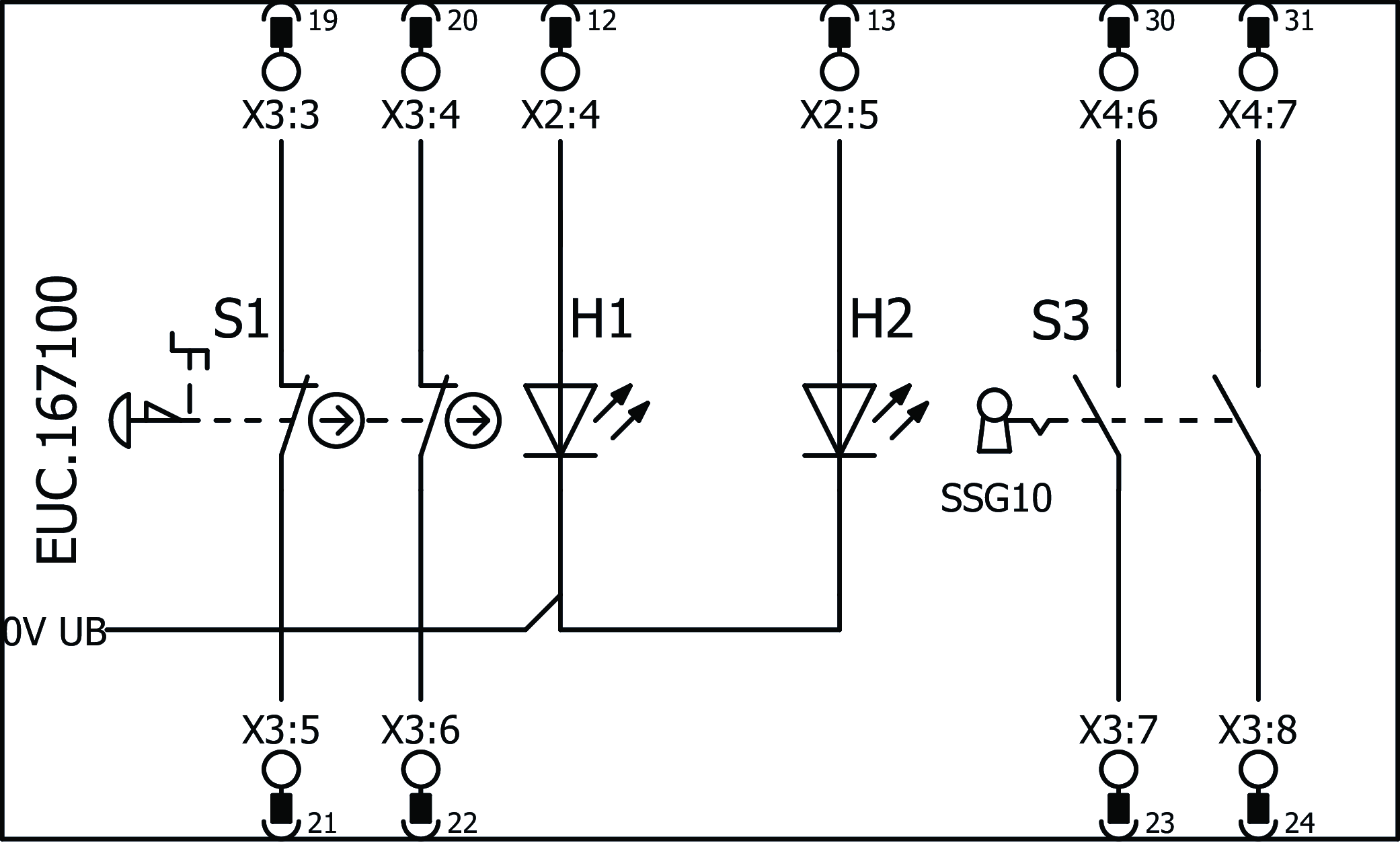

Connection examples

Connection examples

Technical data

Operating and display elements

ItemColorExtrasSwitching elementSlide-in labelNote slide-in labelVersionNumberDesignation1LED
12 PDIlluminated emergency stop
2whiteSignal indicator
3SSG 102NOKey-operated rotary switch (test pulse monitored)

Electrical connection values

Current consumption max. 24 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC
Illuminated emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic, die-cast zinc, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.13x10620 y
Safe key-operated rotary switch0.06x10620 y


Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000036

Downloads

Ordering data

Ordernumber 167100
Item designation MSM-1-P-CS-B0L0D1-I1-167100
Gross weight 0,23kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Feldbus, Dez. Peripherie - Funktions-/Technologie-Modul
