Actuator CET-A-BWR-50X-170115
- Actuator for read head/safety switch CET
- Transponder coding
- Improved properties for use in a harsh environment (contamination, swarf)
- Four safety screws M5x16 included
Description

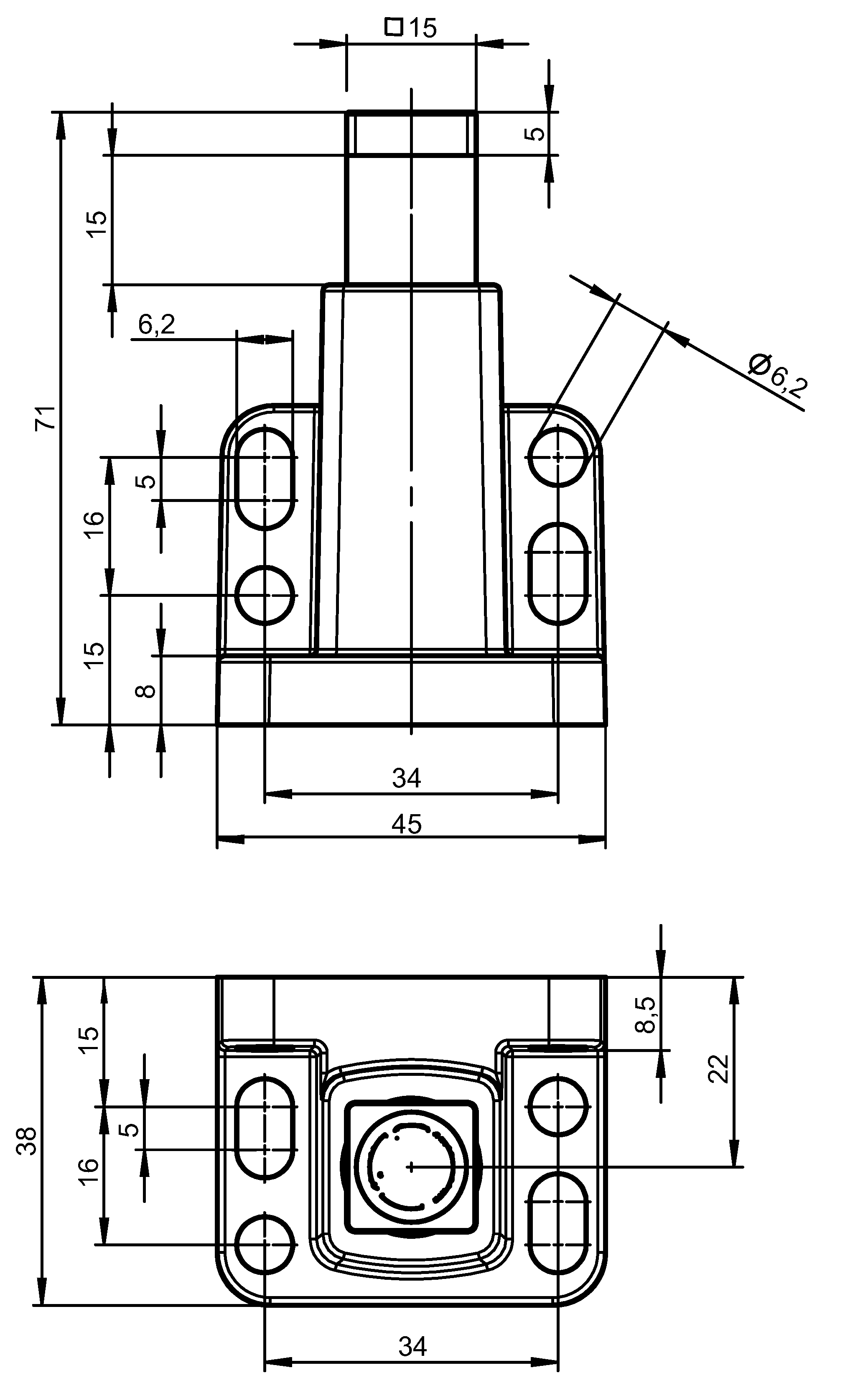

Dimensional drawings
Technical data
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Approach direction | Any |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 2 x 10⁶ |
| Degree of protection | IP67 (Degree of protection of the transponder) |
| Ambient temperature | -20 ... 55 °C |
| Material | stainless steel |
| Locking force Fmax | 6500 N |
| Locking force FZh | 5000 N |
Accessories
Function expansion
Cover for actuator CET
124979
AM-C-124979
AM-C-124979
- Horizontal and vertical mounting option on the actuator
- Mounting using 4 screws M5x16 (included with the actuator)
124721
AM-C-124721
AM-C-124721
- Horizontal mounting option on the actuator
- Mounting using 4 screws M5x16 (included with the actuator)
125503
AM-C-125503
AM-C-125503
- Cover for actuator CET
- Horizontal and vertical mounting option on the actuator
- Mounting using 4 screws M6x16 (not included)
- Suitable for combination with the lockout bar for CET actuator AE-L-CET-156429
Downloads
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2077154
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001581
Version
Language
Size
0,2 MB
Ordering data
| Ordernumber | 170115 |
| Item designation | CET-A-BWR-50X-170115 |
| Gross weight | 0,317kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Betätiger für sicherheitsgerichteten Näherungsschalter |
