SGP2E-2131A-9C-DCX (Order no. 100907)

Safety switch SGP, plug connector MR9

  • Plug connector MR9, 9-pin (without PE)
  • 3 pos. driven contact
  • 1 NO contacts
SGP2E-2131A-9C-DCX (Order no. 100907)

Description

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Switching element

2131

Slow-action switching contact 3 positively driven contacts + 1 NO contact

Accessories required

Actuator is not included.

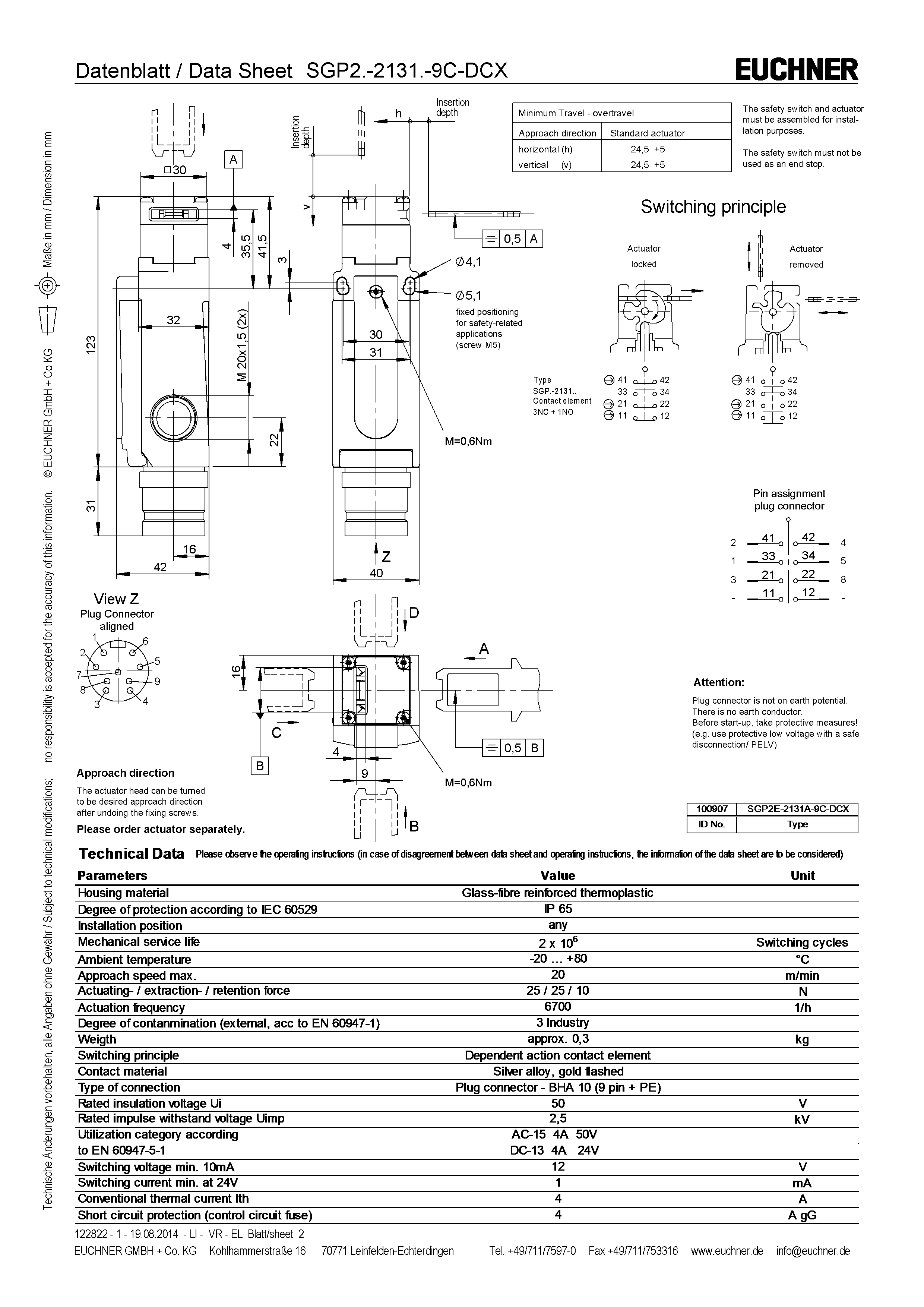

Dimension drawing
Dimension drawing
Wiring diagram<br>Wiring diagram 2131
Wiring diagram
Wiring diagram 2131
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Insertion depth
2Fixed positioning for safety applications (screw M5)
3View Z: Plug connector aligned

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20TÜV Rheinland_SGP_968/EL 473.04/22CCC2024010305643681_GP_SGP_SGAc_UL_us_E155795_2/4

Electrical connection values

Fuse max. 4 A gG
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
AC-15 4 A 50 V
DC-13 4 A 24 V
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Anfahrgeschwindigkeit max. 20 m/min
Approach direction A
Connection type
1 x Plug connector BHA9 (9-pin (without PE))
Number of door position NO contacts 1
Number of door position positively driven contacts 3
Extraction force 25 N
Actuation frequency max. 6700 1/h
Actuating force 25 N
Installation orientation any
Insertion depth 24.5 mm
Storage temperature -25 ... 80 °C
Mechanical life 2 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP65
Ambient temperature -20 ... 80 °C
Material
Housing Reinforced thermoplastic
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position3x10620 y
Important! Values valid at DC-13 100 mA/24V


In combination with actuator ACTUATOR-S-GT-SN

Horizontal overtravel 5 mm
Vertical overtravel 5 mm

Accessories

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 100907
Item designation SGP2E-2131A-9C-DCX
Gross weight 0,267kg
Customs tariff number 85365019000
ECLASS 27-27-26-02 Sicherheitsschalter mit getrenntem Betätiger (Bauart 2)
