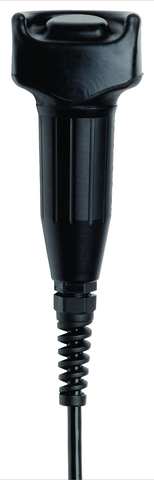

ZSA2-4-10C1903 (Order no. 095497)

ZSA, 3-stage, built-in plug connector MR10

  • Housing G1
  • 3-stage function
  • Plug connector MR10
ZSA2-4-10C1903 (Order no. 095497)

Description

Switching element

2220

2NO/NC 1) Closed only in center position; one NO contact and one positively driven contact are combined internally.

3-stage function

Enabling function is active only in the second stage (center position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

Dimension drawing
Dimension drawing
Wiring diagram<br>Connector assignment
Wiring diagram
Connector assignment

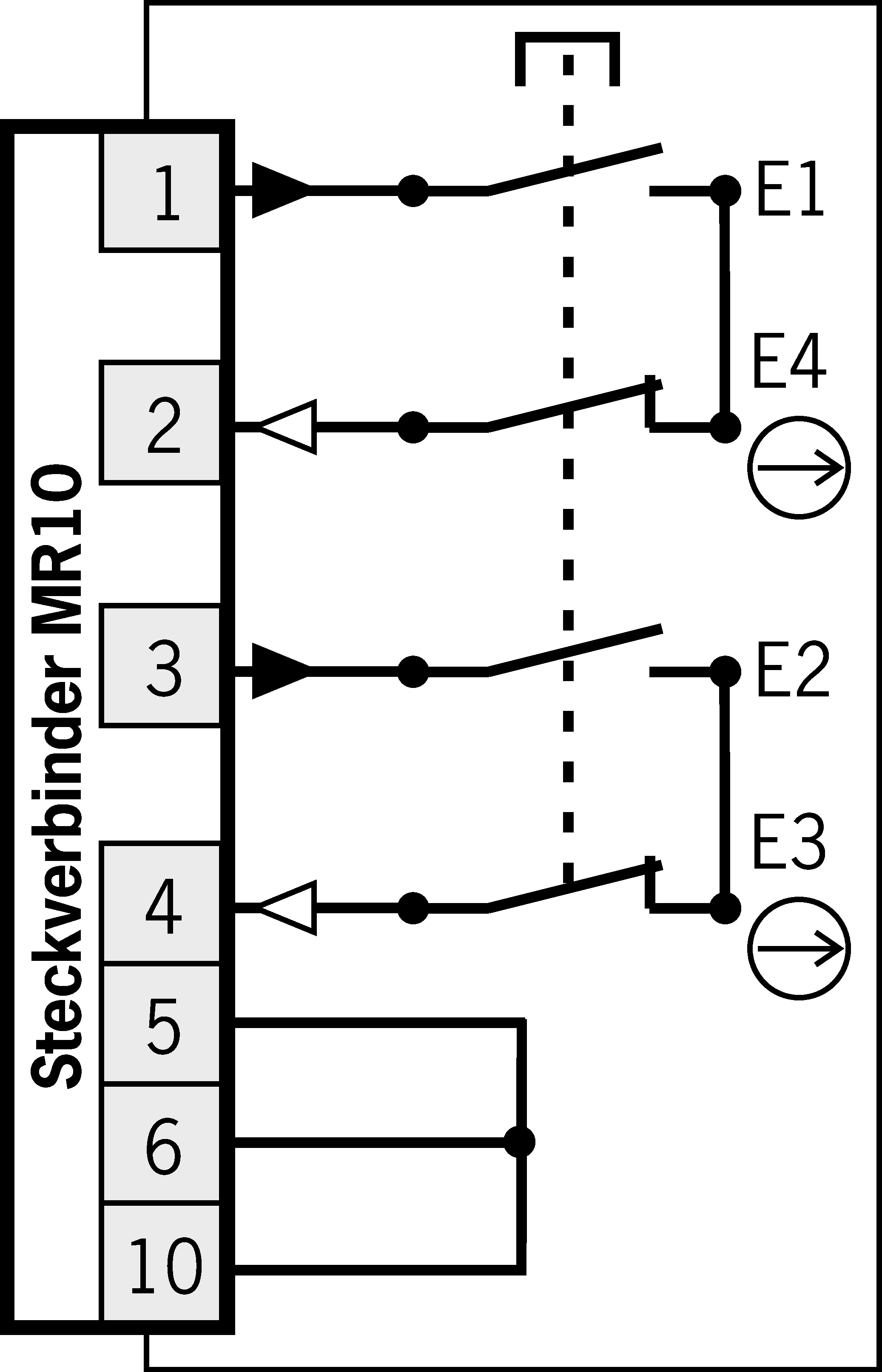

Wiring diagram<br>Wiring diagram 2220 MR10
Wiring diagram
Wiring diagram 2220 MR10
Travel diagram
Travel diagram

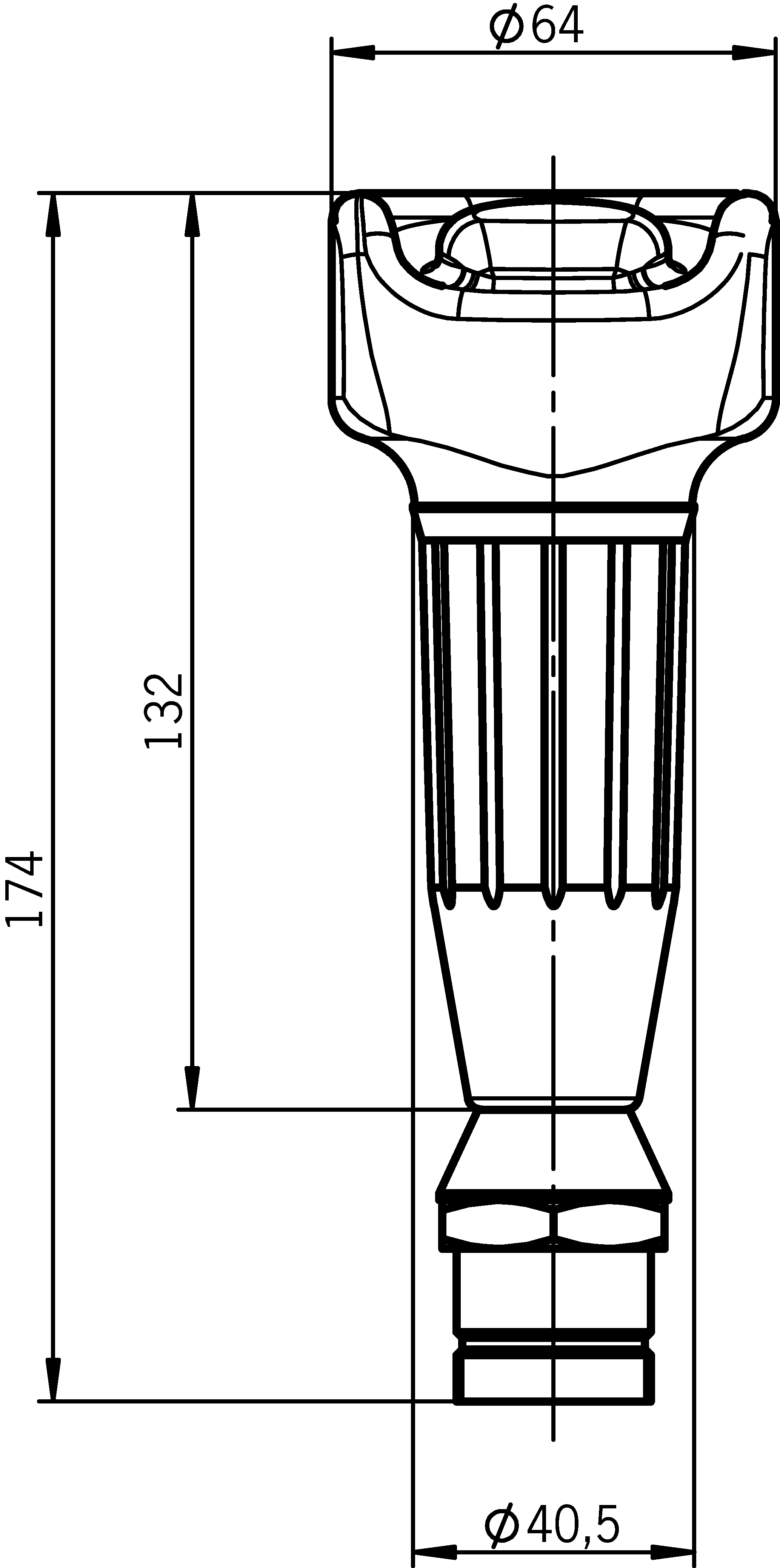

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
square_grey_dark.epsclosed, enabling
square_grey_light.epsclosed
square_white.epsopen

Technical data

Approvals

CCC2024010305643680_EnableSwitch_ZEAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_4/2

Electrical connection values

Fuse max. 2 A gG
rated conditional short-circuit current 100 A
Rated insulation voltage Ui 32 V
Rated impulse voltage Uimp 0.8 kV
Utilization category
AC-15 2 A 24 V
DC-13 2 A 24 V
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
Switching characteristics 3-stage enabling switch
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Connection type Plug connector number of pins 10
Number of NO contacts 2
Number of positively driven contacts 2
Storage temperature -25 ... 70 °C
Mechanical life
Position 1-2-3-1 0.1 x 10⁶
Position 1-2-1 0.1 x 10⁶
Switching principle Slow-action contact element
Degree of protection IP67
Ambient temperature -5 ... 50 °C
Material Plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Enabling switch
B10D 0.5 x 10⁶

Miscellaneous

in compliance with 60947-5-8

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 095497
Item designation ZSA2-4-10C1903
Gross weight 0,329kg
Customs tariff number 85365019000
ECLASS 27-37-12-38 Zustimmschalter
