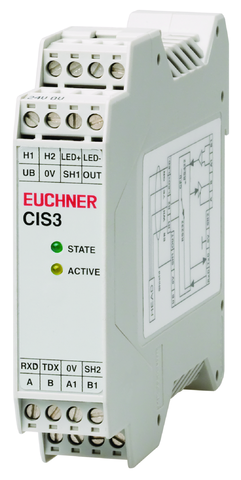

CIA3SX1R1G08 (Order no. 077910)

Read/write interface adapter CIA3SX1R1G08

  • Serial interface RS232/RS422
  • In combination with read head CIT3ASX1N12ST
  • Rail mounting
CIA3SX1R1G08 (Order no. 077910)

Description

Serial interface

The individual commands for reading and writing the data carrier are in accordance with the common 3964R protocol and are described in the EUCHNER CIS3 system manual (order no. 084 727). For data carrier programming away from the system, a convenient WINDOWS®-compatible PC software application is available (Software Transponder Coding)

Attention:

  • On the use of a screened cable the connecting cable for the serial interface is allowed to be max. 5 m long for RS232 and max. 1000 m long for RS422.
  • On the use of a screened cable the connecting cable to the write/read head is allowed to be max. 15 m long.
  • It is only ever possible to connect 1 read head per interface adapter.
  • The specifications for the write distance apply to surface installation of the write-read head and flush installation of the data carrier in a non-metallic environment. For the flush installation of the data carrier in ferrous metals, the value is max. 5.5 mm and in aluminum max. 4.5 mm.
Dimension drawing
Dimension drawing
Wiring diagram<br>Wiring diagram read head
Wiring diagram

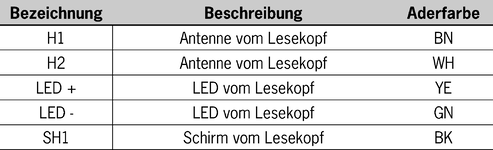

Wiring diagram read head
Wiring diagram<br>Wiring diagram power supply and interface
Wiring diagram
Wiring diagram power supply and interface

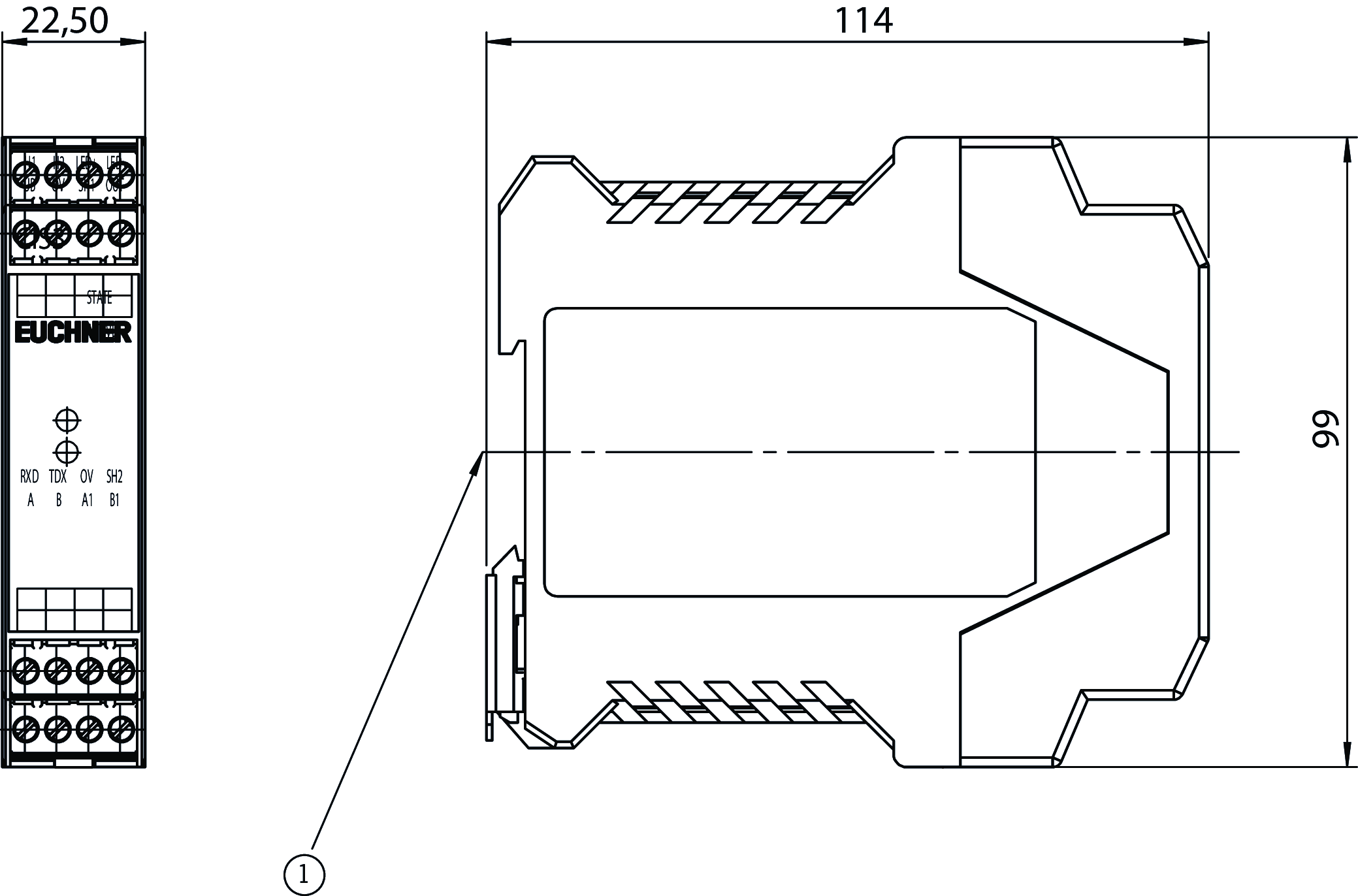

Dimensional drawings

Dimensional drawings
1Suitable for 35 mm mounting rail according to DIN 46277

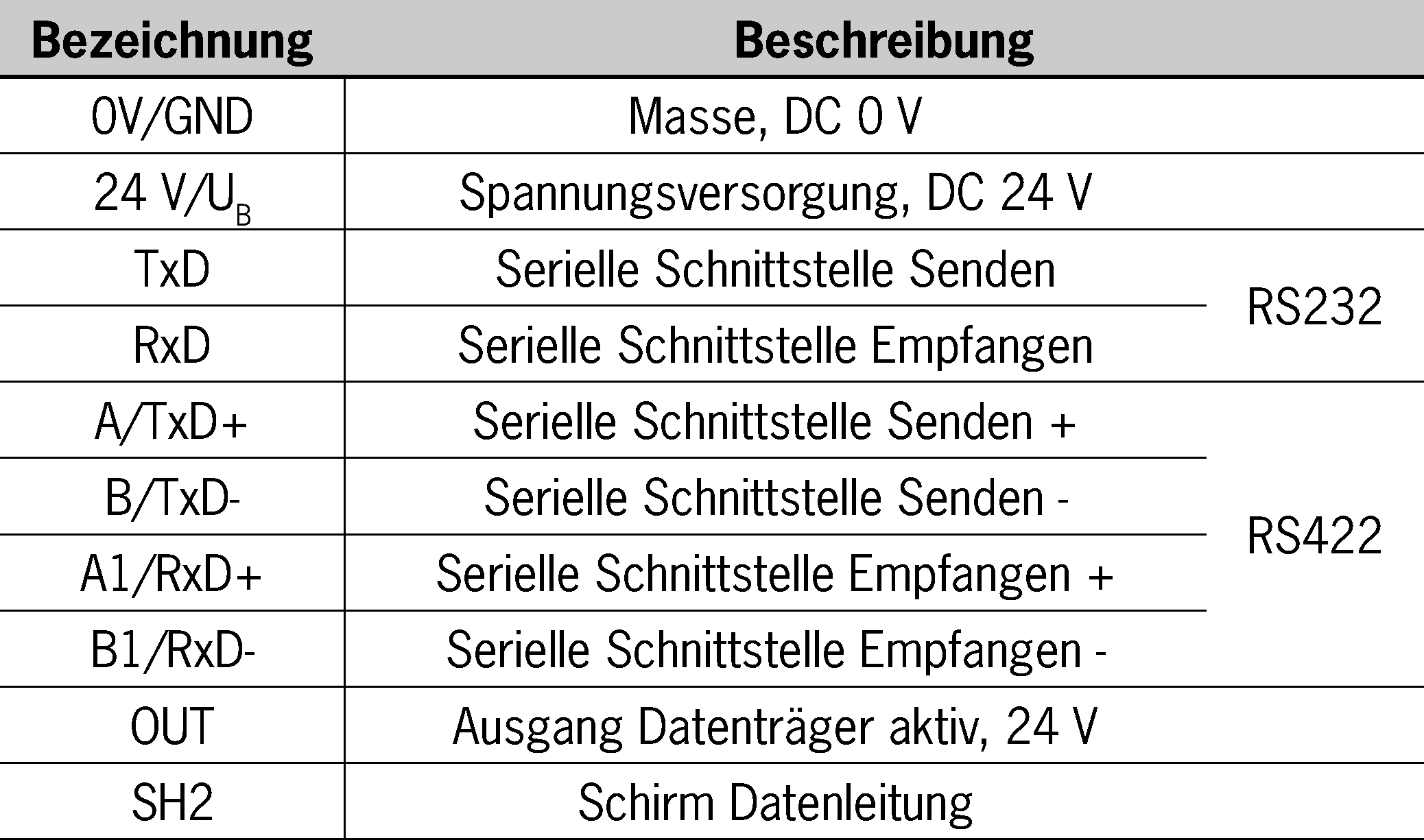

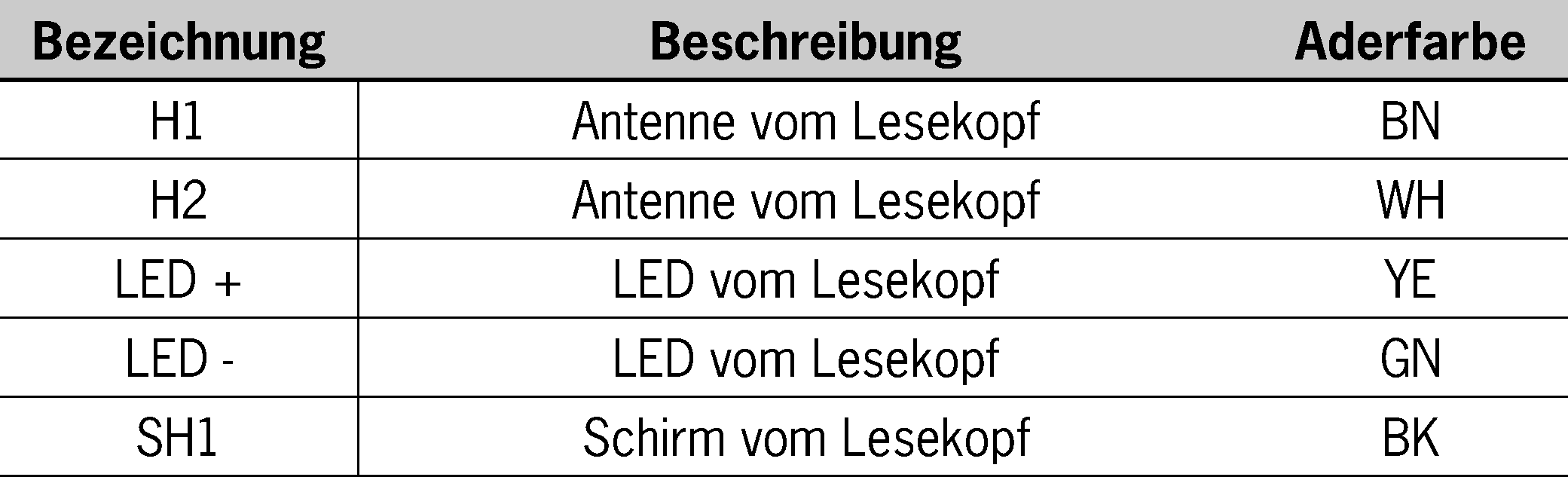

Connection examples

Connection examples

Connection examples

Connection examples

Accessories

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 077910
Item designation CIA3SX1R1G08
Gross weight 0,205kg
Customs tariff number 85364110
ECLASS 27-28-04-01 Identifikation, RFID Reader
