KCB2A002A000000DW (Order no. 093675)

Series KC...

  • Screw terminal
  • 2 actuating directions
  • Pushbutton in handle (D)
  • Bellows for panel mounting (W)
KCB2A002A000000DW (Order no. 093675)

Description

Function drawing<br>Switching function
Function drawing
Switching function
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

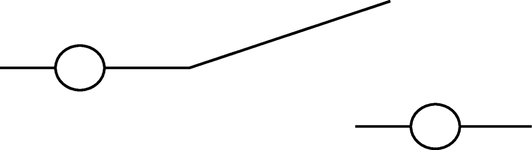

Wiring diagram<br>Pushbutton D
Wiring diagram
Pushbutton D
Function drawing<br>Switching positions
Function drawing
Switching positions
Wiring diagram
Wiring diagram

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

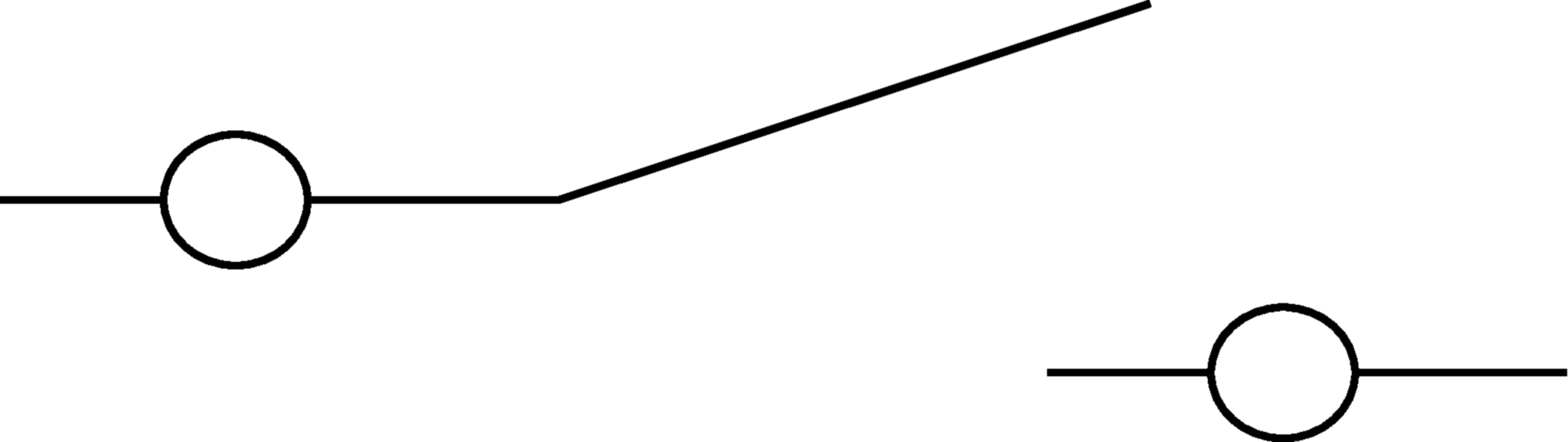

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

DNV-GL_TAA000007ECCC2024010305643588_Joystick KC

Electrical connection values

Fuse T6/F10
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
DC-13 24V 2A
AC-15 230V 4A
Switching voltage min. 10 V
Switching current
(at 24V) min. 12 mA
Pushbutton in handle
Utilization category
AC-15 230V 2A
DC-13 24V 1A
Switching voltage min. 10 V
Switching current
(at 24V) min. 12 mA

Mechanical values and environment

Connection type Screw terminal
Number of monitoring contacts max. 6 6 (2 directions x 3 switching elements)
Actuating directions max. 2 max. 3 positions (0-1-2) possible per type and direction
Storage temperature -25 ... 70 °C
Mechanical life 1 x 10⁶
Mounting cut-out Ø 52 mm
Switching principle Changeover contact C, IEC 947-5-1 (Snap-action contact element, design ES556)
Degree of protection
on the front with bellows IP65 (Version W)
Ambient temperature -5 ... 65 °C
Material
Contact Silver alloy
Bellows elastomer, black (Low PAH)
Housing thermoplastic/aluminum
Switching lever galvanized steel
Pushbutton in handle
Actuating force max. 8 N
Mechanical life
(at 0.7A / 250V AC) 0.05 x 10⁶
Switching principle 1 contact

Miscellaneous

Additional feature
Bellows W for panel mounting
Pushbutton in handle

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 093675
Item designation KCB2A002A000000DW
Gross weight 0,469kg
Customs tariff number 85365019000
ECLASS 27-37-14-04 Steuerschalter, Joystick
