MSM-1-P-CA-PPP-Q7-175496 (Order no. 175496)

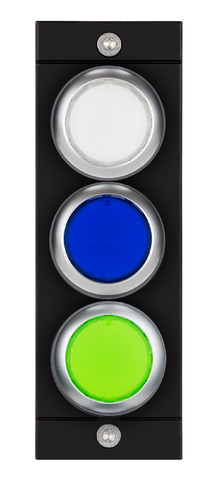

Submodule MSM-1-P... 3 illuminated pushbuttons (white/blue/green)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 3 illuminated pushbuttons (white/blue/green)
MSM-1-P-CA-PPP-Q7-175496 (Order no. 175496)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
Pos 1Illuminated pushbutton
Pos 2Illuminated pushbutton
Pos 3Illuminated pushbutton
Zmarks orientation of item 1

Dimensional drawings

Dimensional drawings

Technical data

Approvals

EAC_RU C-DE.HX37.B.14157/20

Operating and display elements

ItemColorExtrasNote slide-in labelSlide-in labelSwitching elementVersionNumberDesignation1LED
1white1NOIlluminated pushbutton
2blue1NOIlluminated pushbutton
3green1NOIlluminated pushbutton

Electrical connection values

Current consumption max. 30 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000003

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 175496
Item designation MSM-1-P-CA-PPP-Q7-175496
Gross weight 0,1kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Feldbus, Dez. Peripherie - Funktions-/Technologie-Modul
