EKS-A-IPB-G01-ST05/02 (Order no. 111230)

Electronic-Key adapter EKS Light compact (supports only operating state 0)

  • Electronic-Key adapter with 4-bit parallel interface
  • Simple connection
  • Read-only system
  • Electronic-Key adapter and evaluation electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Only operating state 0
  • Connection to PLC
EKS-A-IPB-G01-ST05/02 (Order no. 111230)

Description

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

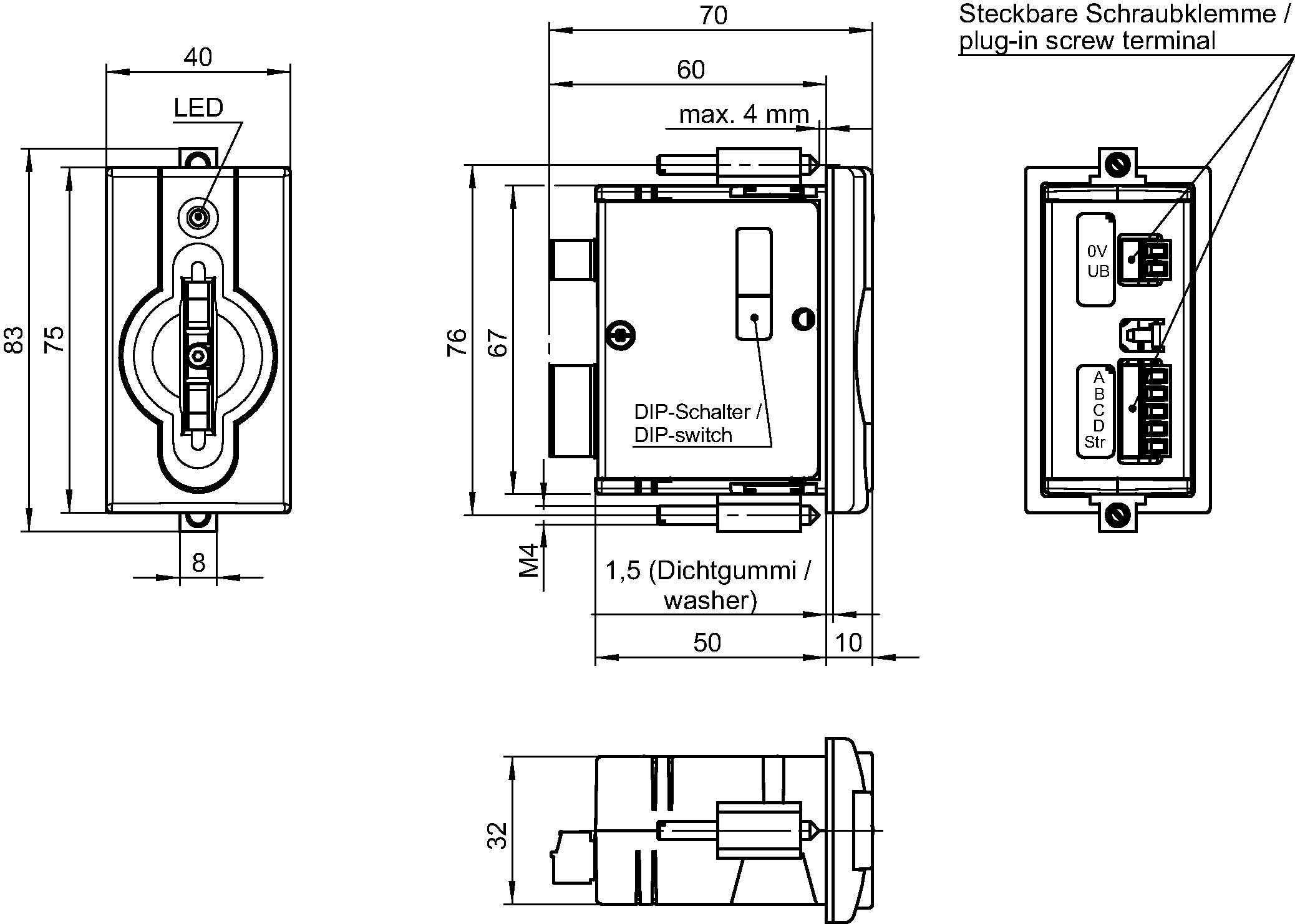

Dimensional drawings

Dimensional drawings

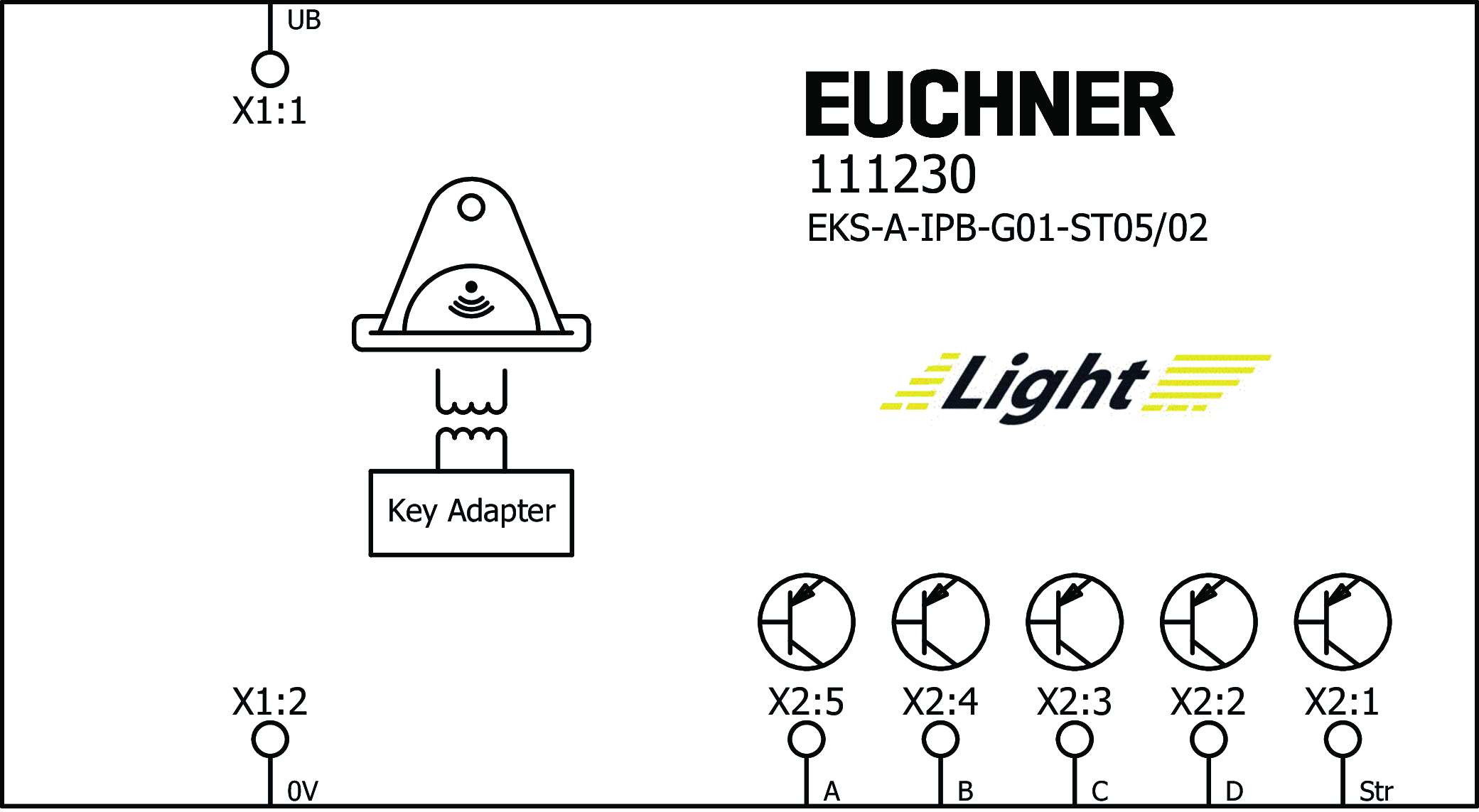

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E240367_X1/A1EAC_RU C-DE.HX37.B.14157/20c_UL_us_E240367_X1/A1

Operating and display elements

LED display
yellow Key in actuating range
green operational
red Error

Electrical connection values

Connection cross section 0.14 ... 1.5 mm²
Power supply
Operating voltage DC 9 ... 24 ... 28 V DC (This device is intended to be used with a Class 2 power source in accordance with UL1310.)
Current consumption max. 70 mA
Interface and signaling
Switching voltage UB-2 ... UB V (High signal)
Switching current 1 ... 10 ... 50 mA (High signal)

Mechanical values and environment

Storage temperature -25 ... 70 °C
Mounting type On the front
Mounting cut-out 33 x 68 mm
Degree of protection
in mounted condition (only access side) IP67
Ambient temperature -20 ... 70 °C
Material
Housing PA6-GF30, gray/black

Interface

Interface and signaling
Date interface 4-bit parallel plus strobe, binary coded via High/Low level

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 111230
Item designation EKS-A-IPB-G01-ST05/02
Gross weight 0,178kg
Customs tariff number 85365019000
ECLASS 27-39-90-90 Objekt-, Zutrittsüberwachungssystem (Sonstige, nicht spezifiziert)
