EKS-A-SFH-G30-2000 (Order no. 106585)

EKS Electronic-Key adapter FHM, with flying lead

  • Small design for installations where there is little space
  • Installation in standard assembly hole Ø 22.5 mm
  • Closed design, rounded contours for hygienic areas
  • Plastic with high resistance to media
  • IP69K
  • Cable, 2 m, with flying lead
EKS-A-SFH-G30-2000 (Order no. 106585)

Description

Dimension drawing
Dimension drawing
EKS FSA - selection of safe operating mode up to PL e with touch panel

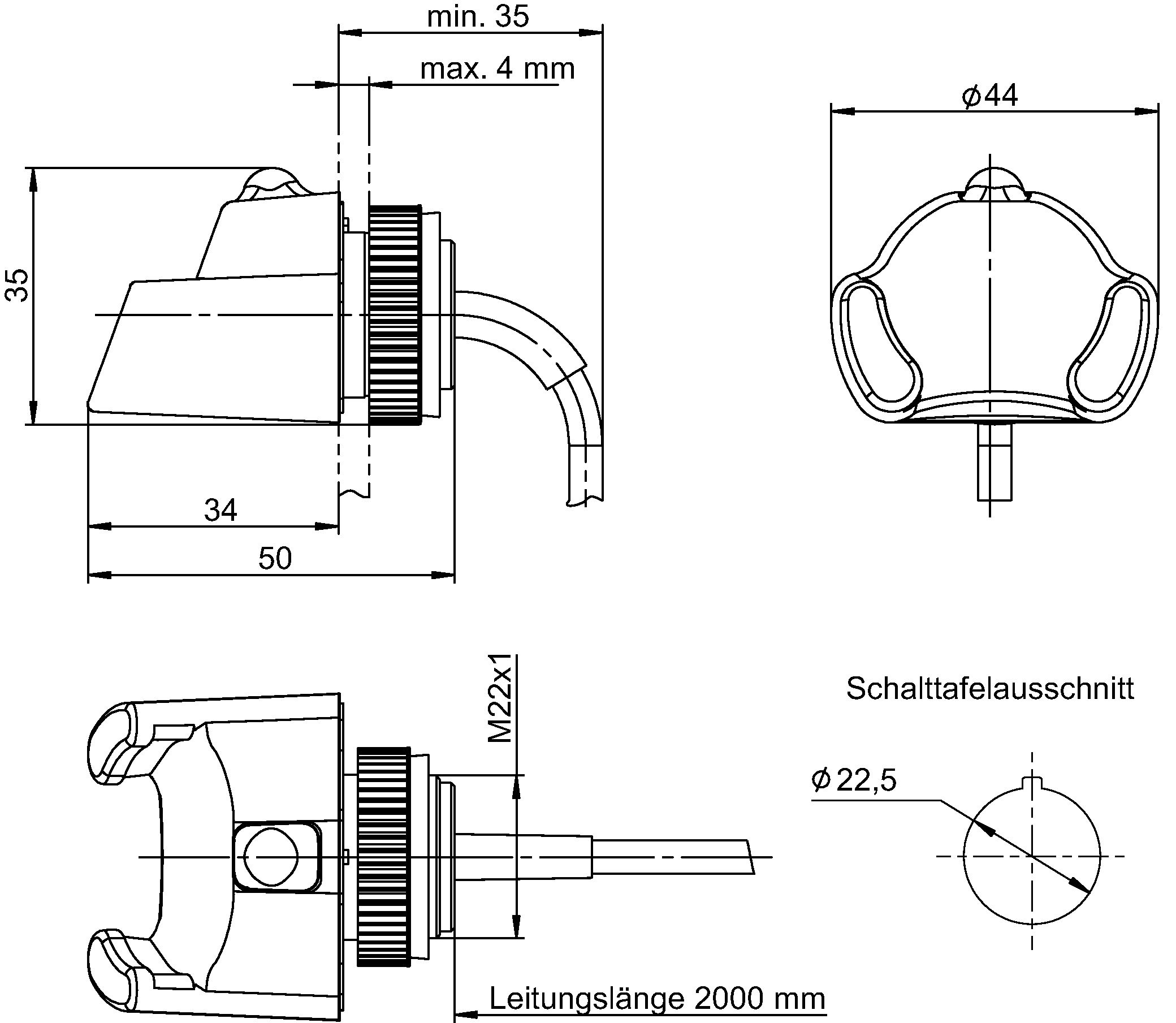

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E240367_X1/A1EAC_RU C-DE.HX37.B.14157/20c_UL_us_E240367_X1/A1

Operating and display elements

LED display
green Electronic-Key adapter ready
red Error
yellow Key in actuating range

Mechanical values and environment

Connection type Connecting cable 4 x 0.25 mm², screened, flying lead
Static bending radius 5x cable diameter
Installation orientation on the front
Storage temperature -25 ... 70 °C
Cable diameter 4.6 mm
Cable length 2 m Cable sheath PVC
Mounting cut-out D22 (EN IEC 60947-5-1)
Degree of protection
in mounted condition (only access side) IP65/IP67/IP69K
Ambient temperature -20 ... 70 °C (Temperatures up to 100 °C are also possible for max. 3 minutes. For cleaning work, for example.)
Material
Housing PVDF GF20, gray

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 106585
Item designation EKS-A-SFH-G30-2000
Gross weight 0,131kg
Customs tariff number 85365019000
ECLASS 27-39-90-90 Objekt-, Zutrittsüberwachungssystem (Sonstige, nicht spezifiziert)
