EKS2-E-PN-M-H1-170904 (Order no. 170904)

Evaluation unit EKS2

  • Evaluation unit of the Electronic-Key-System EKS2
  • Suitable for selection of operation mode with safety level PL e
  • 1-of-n safety outputs
  • PROFINET connection with integrated RT switch
  • Connection for read unit
  • Mounting in panel or control cabinet
  • LED indicator
EKS2-E-PN-M-H1-170904 (Order no. 170904)

Description

PROFINET for easy integration into the network

PROFINET is used to send the data to the control system. With the integrated PROFINET RT switch, the EKS2 evaluation unit can be easily integrated into the existing control environment.

1-of-n safety outputs for the highest safety level PL e

The 1-of-n safety outputs are directly connected to a safe control system and evaluated there. This allows for the selection of a safe operating mode on the highest safety level, PL e.The device has dedicated short circuit monitoring.

Mounting

The evaluation unit can be installed either in the panel or in the control cabinet. An optional mounting rail adapter is available for mounting in the control cabinet.

Accessories included

  • Plug-in screw terminals

Accessories required (not included)

  • Assembly screws

  • Connecting cable for connecting the read unit to the evaluation unit

Dimension drawing
Dimension drawing

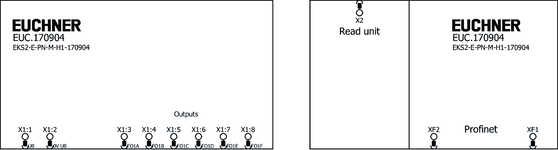

Wiring diagram
Wiring diagram

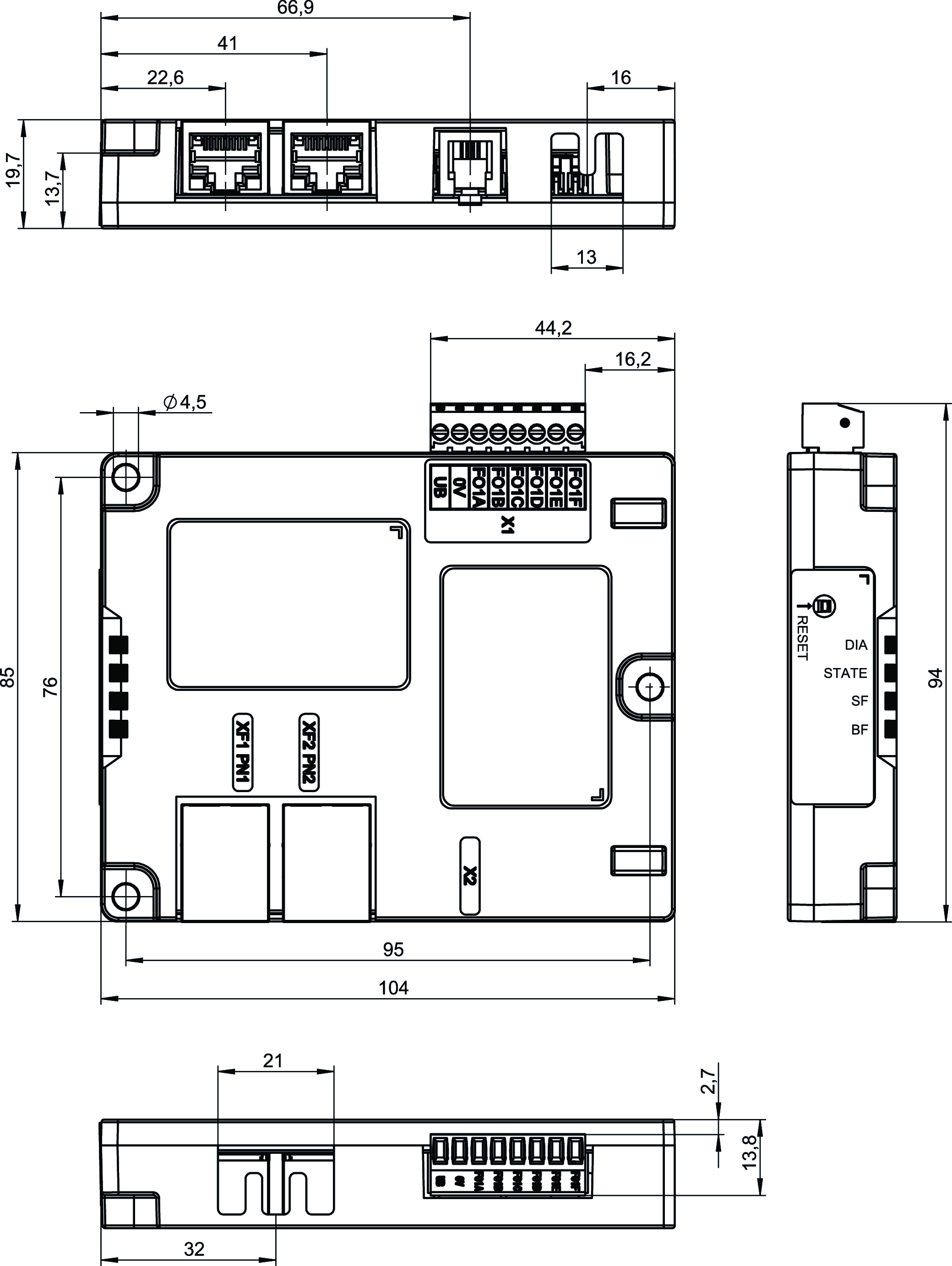

Dimensional drawings

Dimensional drawings

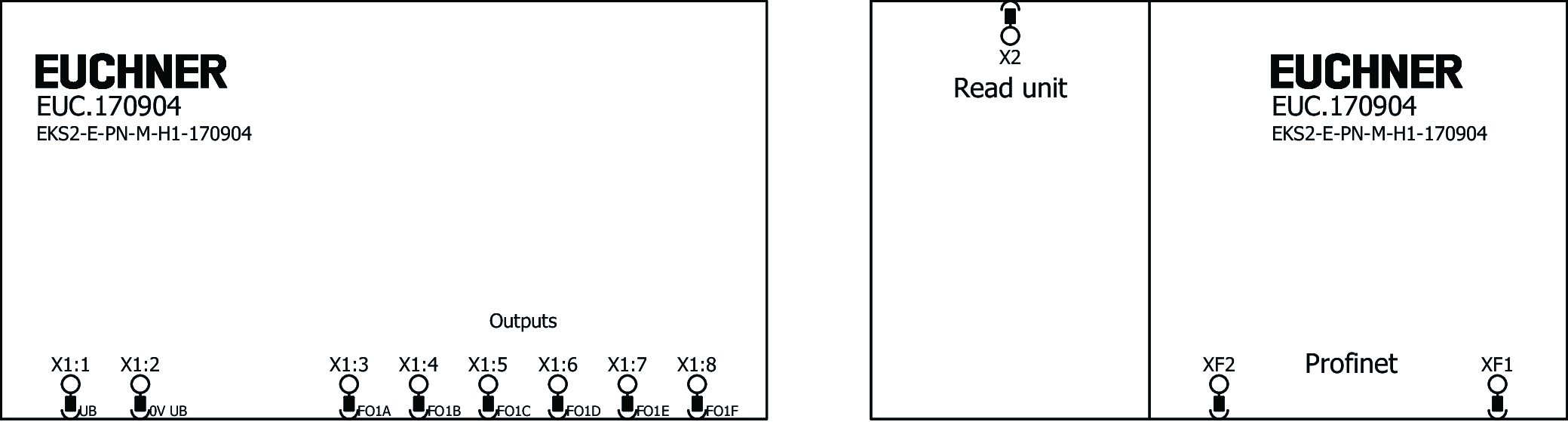

Connection examples

Connection examples

Technical data

Approvals

TÜV SÜD_EKS2_Z10 040393 0046 Rev. 02

Electrical connection values

Connection cross section
X1 (screw terminal, 8-pole) 0.05 ... 1.5 mm²
Operating voltage DC
UB 24 V DC -15% ... +20% regulated, residual ripple<5%, PELV
EMC protection requirements EN 61000-6-2, EN 61000-6-4
Current consumption
without load max. 150 mA
Safety outputs FO1X
Output type Semiconductor outputs, p-switching, short circuit-proof
Output voltage
HIGH U(FO1X) UB-1.5V ... UB V DC (Values at a switching current of 50 mA without taking into account the cable lengths.)
LOW U(FO1X) 0 ... 1 V DC
Utilization category
DC-13 DC-13 24 V 50 mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.)
Off-state current Ir max. 0.25 mA
Switching current
per safety output 1 ... 50 mA

Mechanical values and environment

Connection type
according to IEC 61076-3-117, variant 14, screened, Profinet I/O cable, at least cat. 5e RJ45 (XF2 (The document PROFINET 'Cabling and Interconnection Technology' from the PNO aids in the correct selection of cables.))
according to IEC 61076-3-117, variant 14, screened, Profinet I/O cable, at least cat. 5e RJ45 (XF1 (The document PROFINET 'Cabling and Interconnection Technology' from the PNO aids in the correct selection of cables.))
Storage temperature -25 ... 70 °C
Cable length max. 100 m
Mounting type Screws (Alternatively, it can be plugged in with an additional mounting rail adapter.)
Degree of protection IP20
Ambient temperature -20 ... 55 °C
Material
Housing PA66 GF40
Read unit interface
Connection type Male plug
Cable length max. 50 m
Number of pins 5
Insertion cycles 10

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Safe switching and monitoring of the selected operating modePL e36.44x10-9320 y


Miscellaneous

Component Operation only with UL Class 2 power supply or equivalent measures

Interface

Bus data protocol PROFINET
Data rate 10/100 Mbit/s
Date interface Ethernet (IEEE 802.3)

Accessories

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 170904
Item designation EKS2-E-PN-M-H1-170904
Gross weight 0,149kg
Customs tariff number 85365019000
ECLASS 27-39-90-90 Objekt-, Zutrittsüberwachungssystem (Sonstige, nicht spezifiziert)
