EKS2-P-USB-N-I1B0-C1-172018 (Order no. 172018)

EKS2 Programming Station

  • For reading and writing EKS and EKS2 Electronic-Keys
  • Connection to standard PC via the USB-C interface
  • LED indicator
EKS2-P-USB-N-I1B0-C1-172018 (Order no. 172018)

Description

Accessories required (not included)

  • USB cable for USB-C connection

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

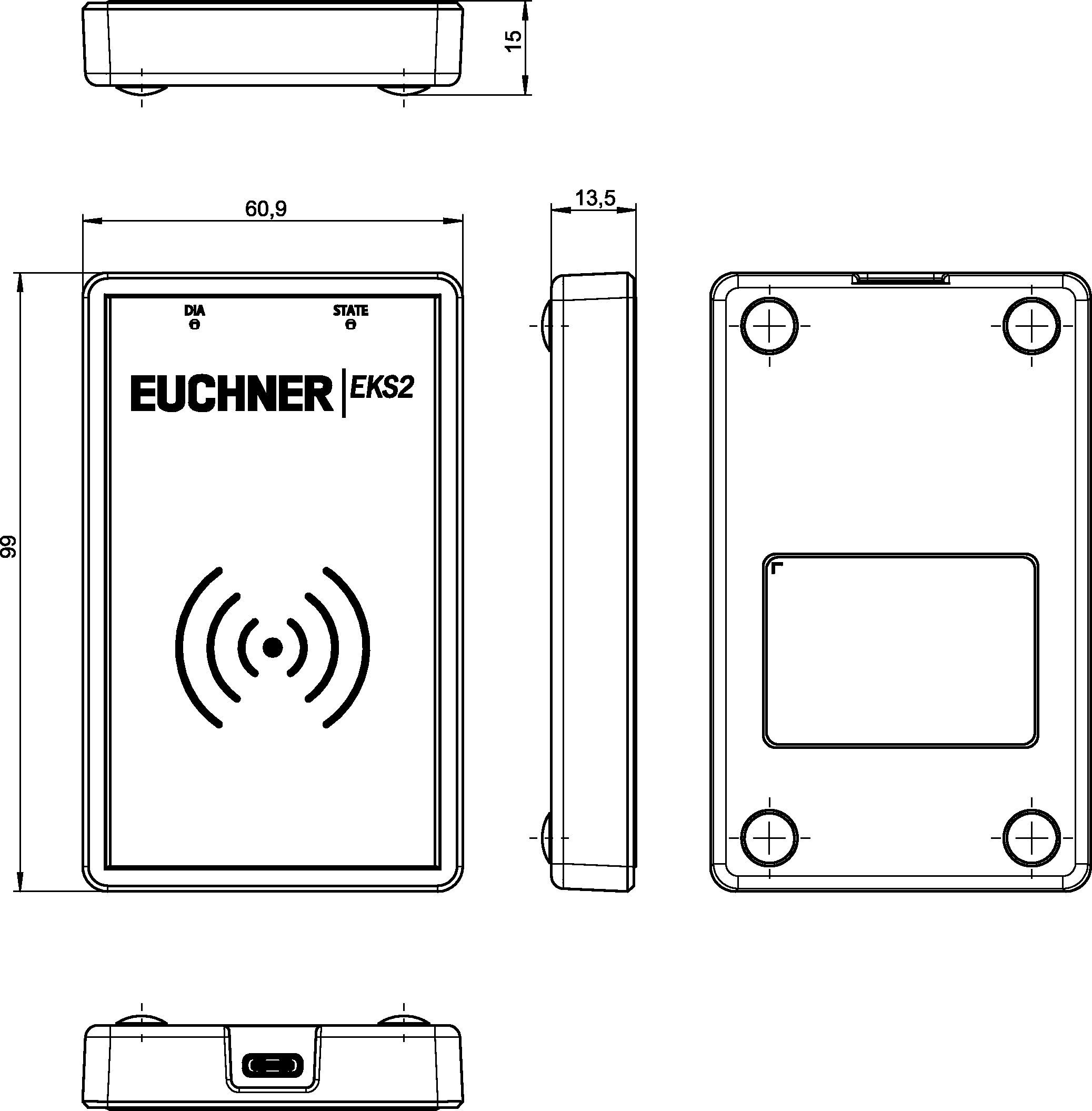

Dimensional drawings

Dimensional drawings

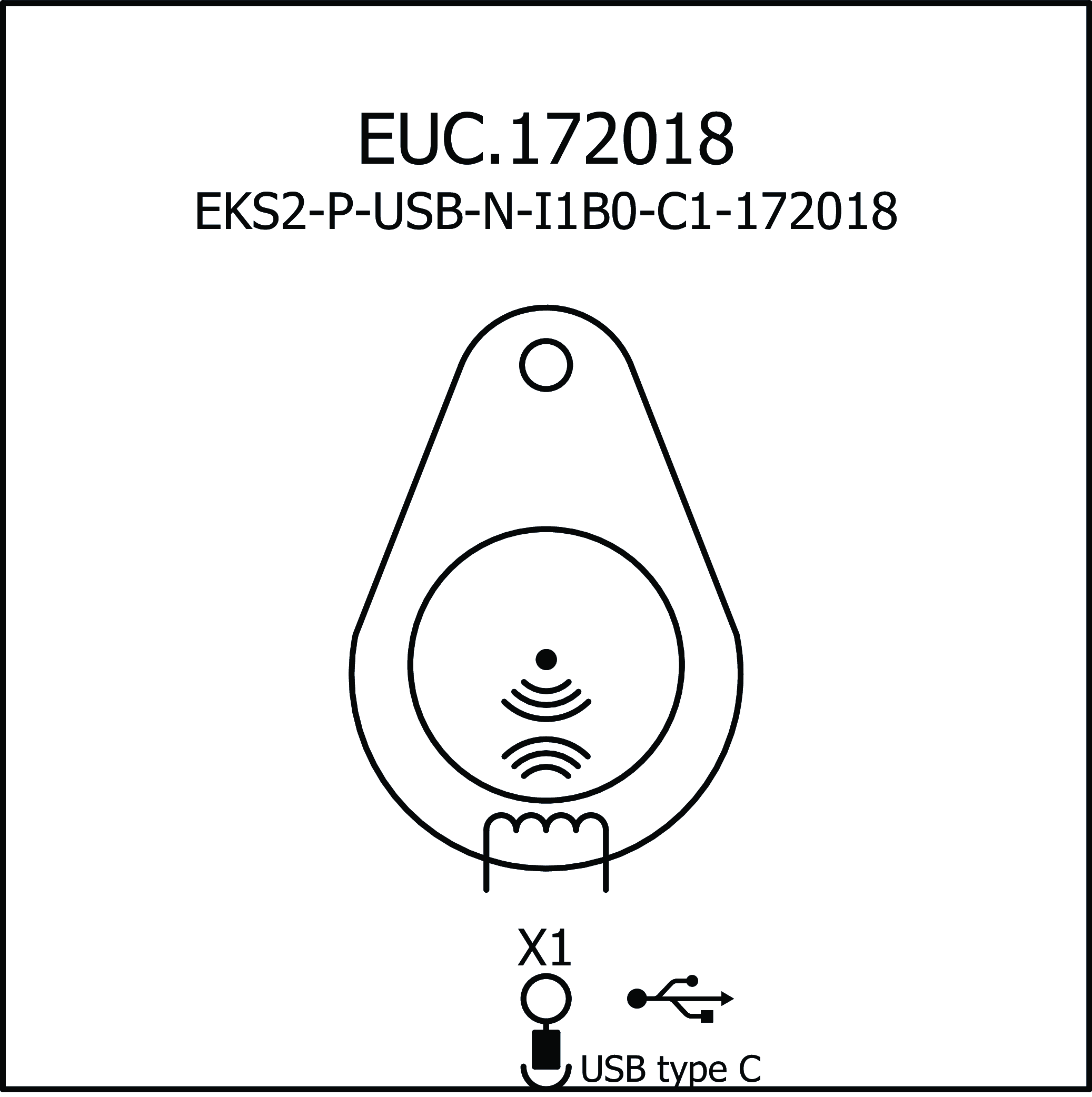

Connection examples

Connection examples

Technical data

Electrical connection values

Power supply via USB
Current consumption
IB max. 100 mA

Mechanical values and environment

Storage temperature -25 ... 70 °C
Degree of protection IP40
Ambient temperature 0 ... 55 °C
Material
Housing Plastic PC+ABS, PC
USB interface
Connection type USB type C socket
Cable length max. 3 m USB

Interface

USB interface
Interface
to PC USB Full Speed (compatible with all USB versions)

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 172018
Item designation EKS2-P-USB-N-I1B0-C1-172018
Gross weight 0,102kg
Customs tariff number 85389099990
ECLASS 27-39-90-90 Objekt-, Zutrittsüberwachungssystem (Sonstige, nicht spezifiziert)
