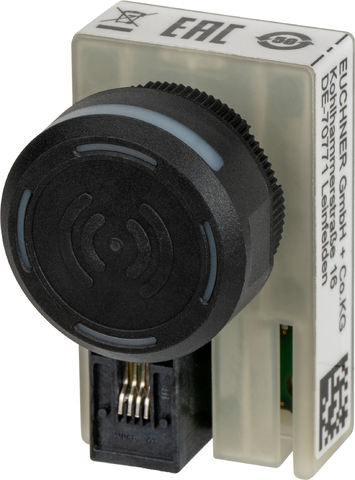

EKS2-R-I1B1-B1-170919 (Order no. 170919)

Read unit EKS2 without holding clip

  • Read unit for the Electronic-Key-System EKS2
  • Suitable for installation in standard mounting hole Ø 22.5 mm
  • Degree of protection IP65/IP67/IP69/IP69K
  • LED indicator
  • Without holding clip for the key
  • Any installation position
EKS2-R-I1B1-B1-170919 (Order no. 170919)

Description

Important!

The connecting cable for connecting the read unit to the evaluation unit EKS2 must be ordered separately.

Dimension drawing
Dimension drawing
Dimension drawing<br>Dimension drawings
Dimension drawing
Dimension drawings
Wiring diagram
Wiring diagram

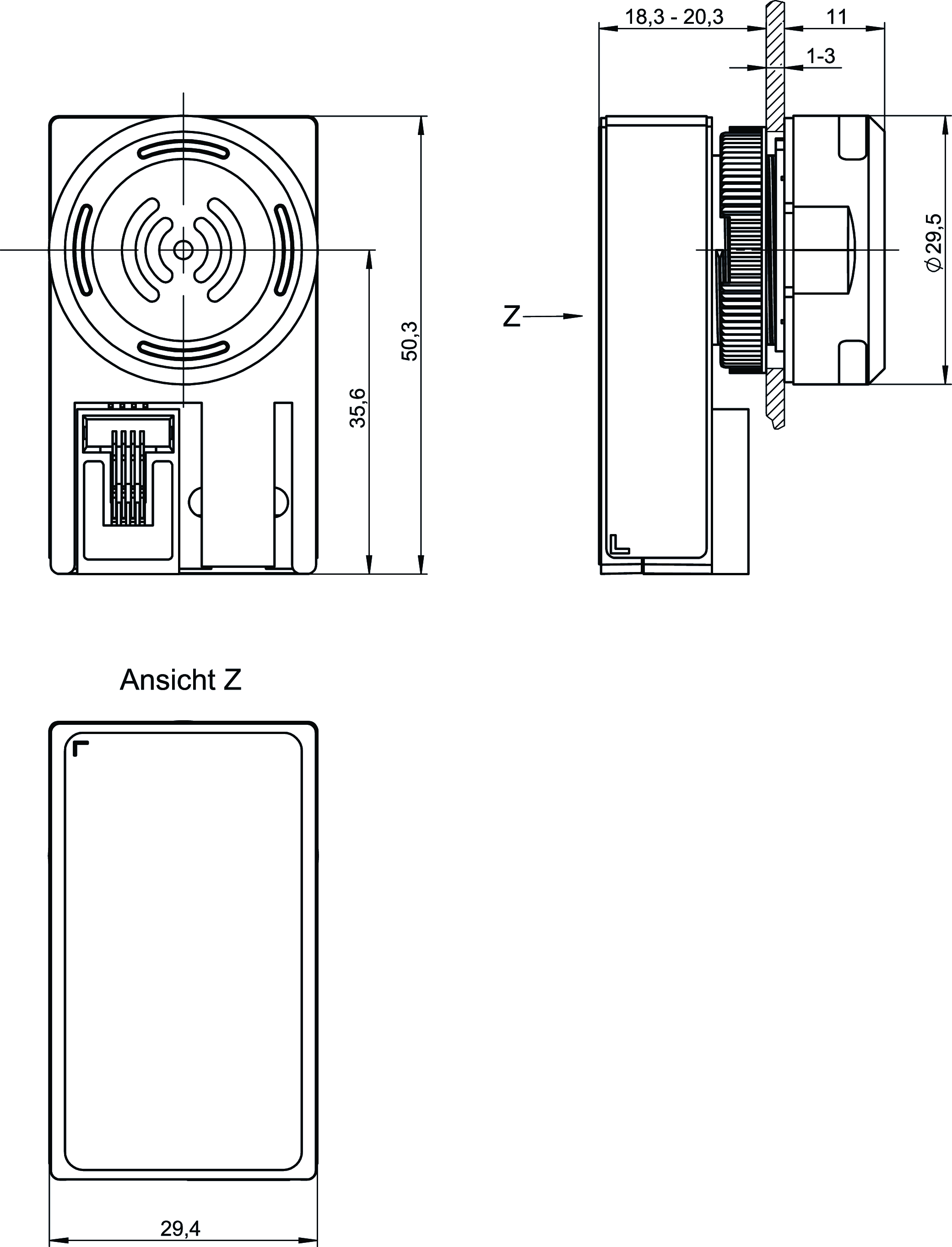

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

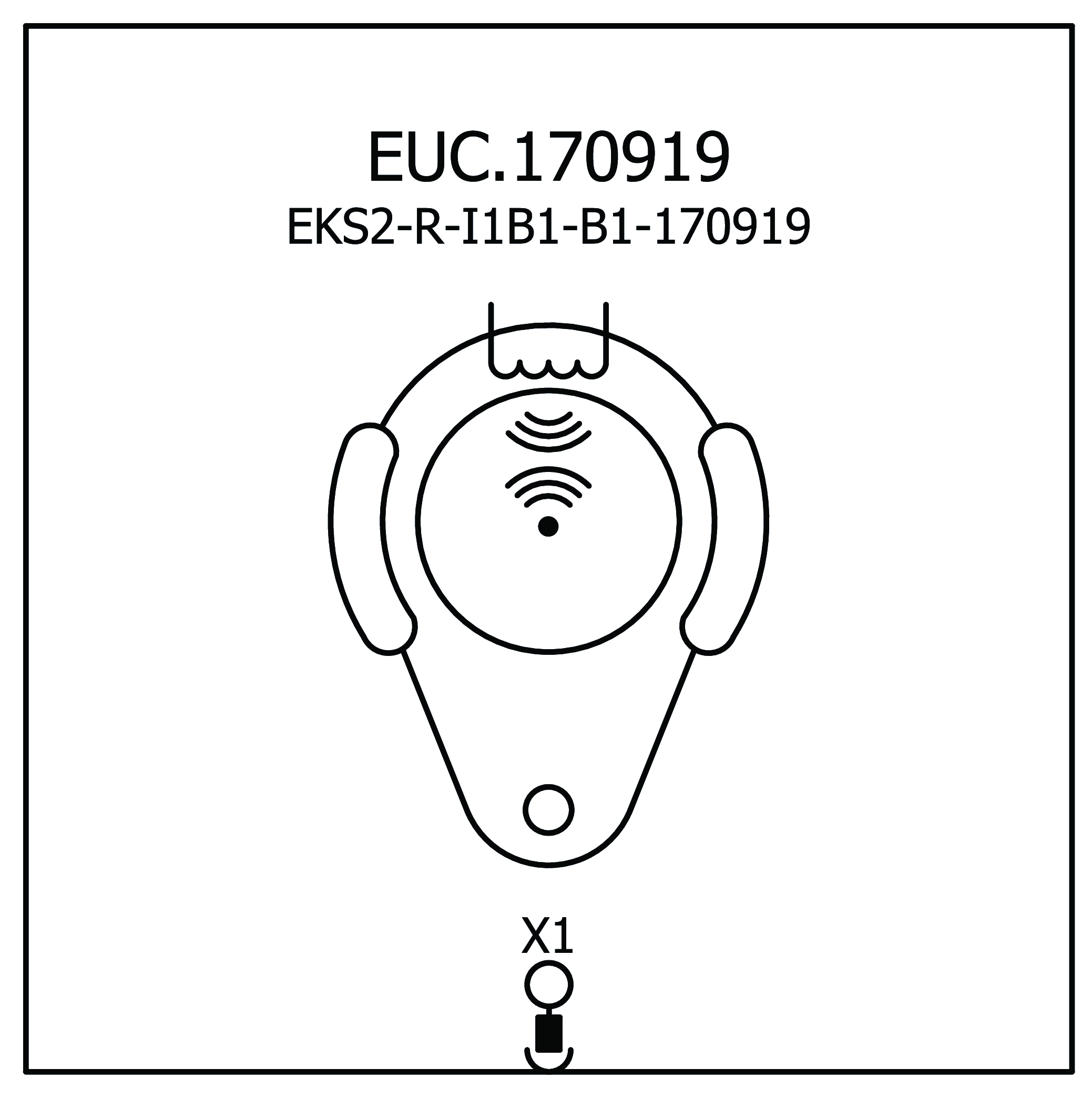

Connection examples

Connection examples

Technical data

Approvals

TÜV SÜD_EKS2_Z10 040393 0046 Rev. 02

Electrical connection values

Operating voltage DC
UB 24 V DC -15% ... +20% regulated, residual ripple<5%, PELV (Supply via EKS2 evaluation unit)

Mechanical values and environment

Connection type RJ9 plug connector, 4-pin
Installation orientation on the front
Storage temperature -25 ... 70 °C
Cable length max. 50 m
Mounting cut-out D22 (EN IEC 60947-5-1)
Degree of protection
in installed state IP65/IP67/IP69/IP69K
rear side of the panel IP20
Ambient temperature -20 ... 55 °C
Material
Housing Plastic TPU, PBT
Method of operation inductive

Accessories

Downloads

Single Documents

Other Documents

Ordering data

Ordernumber 170919
Item designation EKS2-R-I1B1-B1-170919
Gross weight 0,058kg
Customs tariff number 85365019000
ECLASS 27-39-90-90 Objekt-, Zutrittsüberwachungssystem (Sonstige, nicht spezifiziert)
