암플러그 SR6/ SR11용 대체 크림프 접점
- 수접점 Ø 1.6mm, 크림프 연결부 부착.
- 도체 단면 0.5 - 1.5mm² (AWG 20 - 16)
- 플러그 커넥터 SR6/SR11용
Description

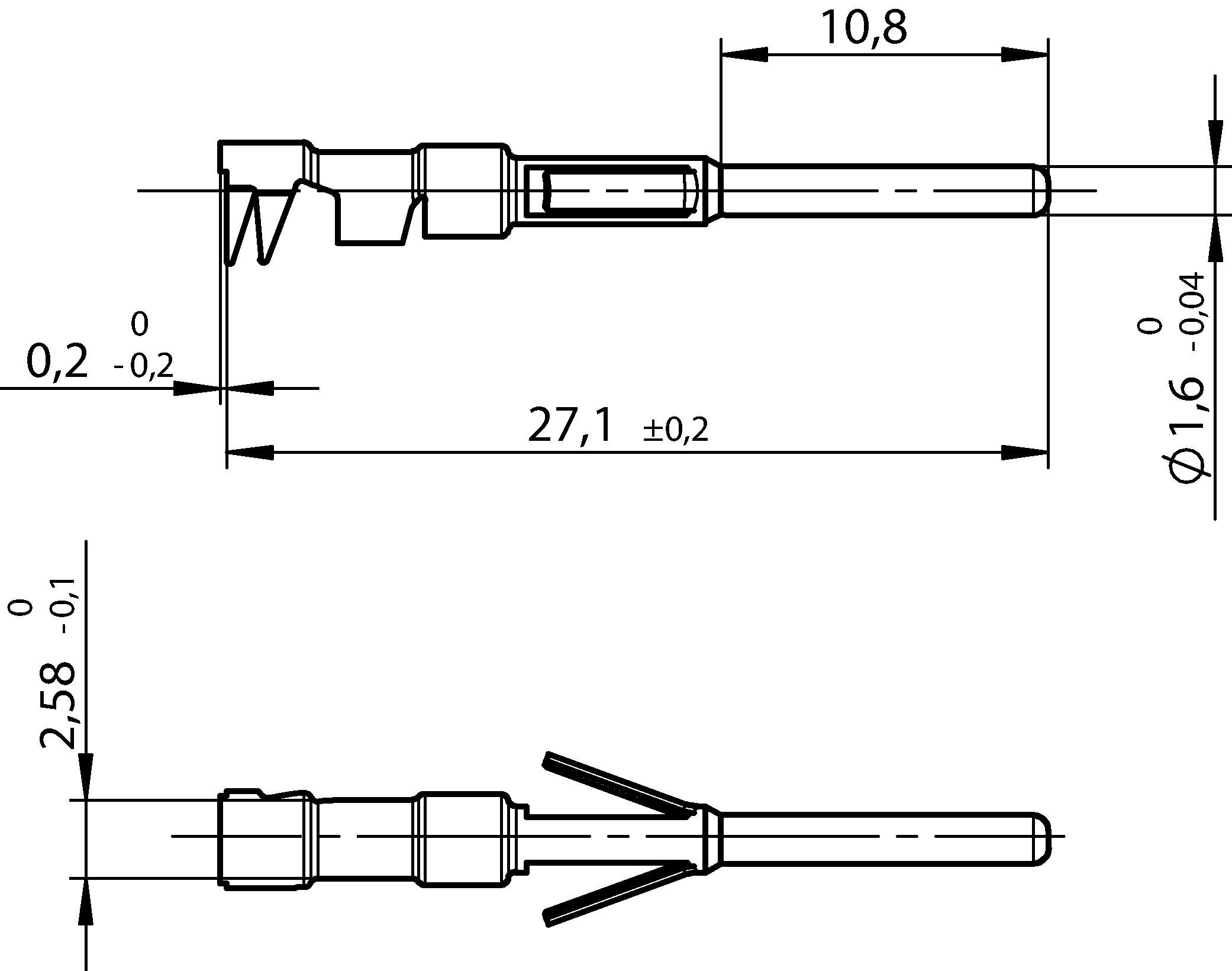

치수 도면
Technical data
전기 연결 값
| 연결 단면도 | 0.5 ... 1.5 mm² |
기계적 가치 및 환경
| 연결 유형 | |
| 연결 유형 | 수접점 Ø 1.6mm, 크림프 연결부 부착 |
| 보관 온도 | -25 ... 70 °C |
| 재질 | |
| CuZn37 | 표면 아연 도금 Ag5 |
Downloads
영업 문서
Safety Switches with Metal Housing
Doc. no.
Version
Language
Size
Safety Switches with Metal Housing
Doc. no.
100369
Version
11-03/18
Language
Size
7,8 MB
Interrupteurs de sécurité avec boîtier métallique
Doc. no.
100676
Version
11-03/18
Language
Size
7,9 MB
Interruptores de seguridad con carcasa metálica
Doc. no.
104856
Version
11-03/18
Language
Size
14,0 MB
Sicherheitsschalter mit Metallgehäuse
Doc. no.
100319
Version
11-03/18
Language
Size
7,9 MB
金属壳体 的安全开关
Doc. no.
102453
Version
11-03/18
Language
Size
8,2 MB
Bezpečnostní spínače s kovovým pouzdrem
Doc. no.
121650
Version
11-03/18
Language
Size
7,8 MB
Safety Switches with Plastic Housing
Doc. no.
Version
Language
Size
Safety Switches with Plastic Housing
Doc. no.
096956
Version
11-03/18
Language
Size
6,5 MB
Interrupteurs de sécurité avec boîtier plastique
Doc. no.
100677
Version
11-03/18
Language
Size
6,6 MB
Interruptores de seguridad con carcasa plástica
Doc. no.
104855
Version
11-03/18
Language
Size
6,6 MB
Sicherheitsschalter mit Kunststoffgehäuse
Doc. no.
096955
Version
11-03/18
Language
Size
6,6 MB
塑料壳体 的安全开关
Doc. no.
116243
Version
11-03/18
Language
Size
6,1 MB
Bezpečnostní spínače s plastovým pouzdrem
Doc. no.
121649
Version
11-03/18
Language
Size
6,5 MB
Ordering data
| Ordernumber | 071261 |
| Item designation | STIFT-CRIMPKONTAKT SRM |
| Gross weight | 0,001kg |
| Customs tariff number | 85444290900 |
