760 - 910 mm의 보호 필드 높이 또는 3개의 빔 라이트 그리드용 반사경이 장착된 달린 마운팅 필러
- 라이트 그리드 및 라이트 커튼 LCA용 굴절 미러가 장착된 마운팅 필라
- 760 - 910mm의 보호 필드 높이용 또는 3개의 빔용
- 손상으로부터 보호
- 커버에 있는 구형 원형 레벨을 사용한 간단한 조정
Description

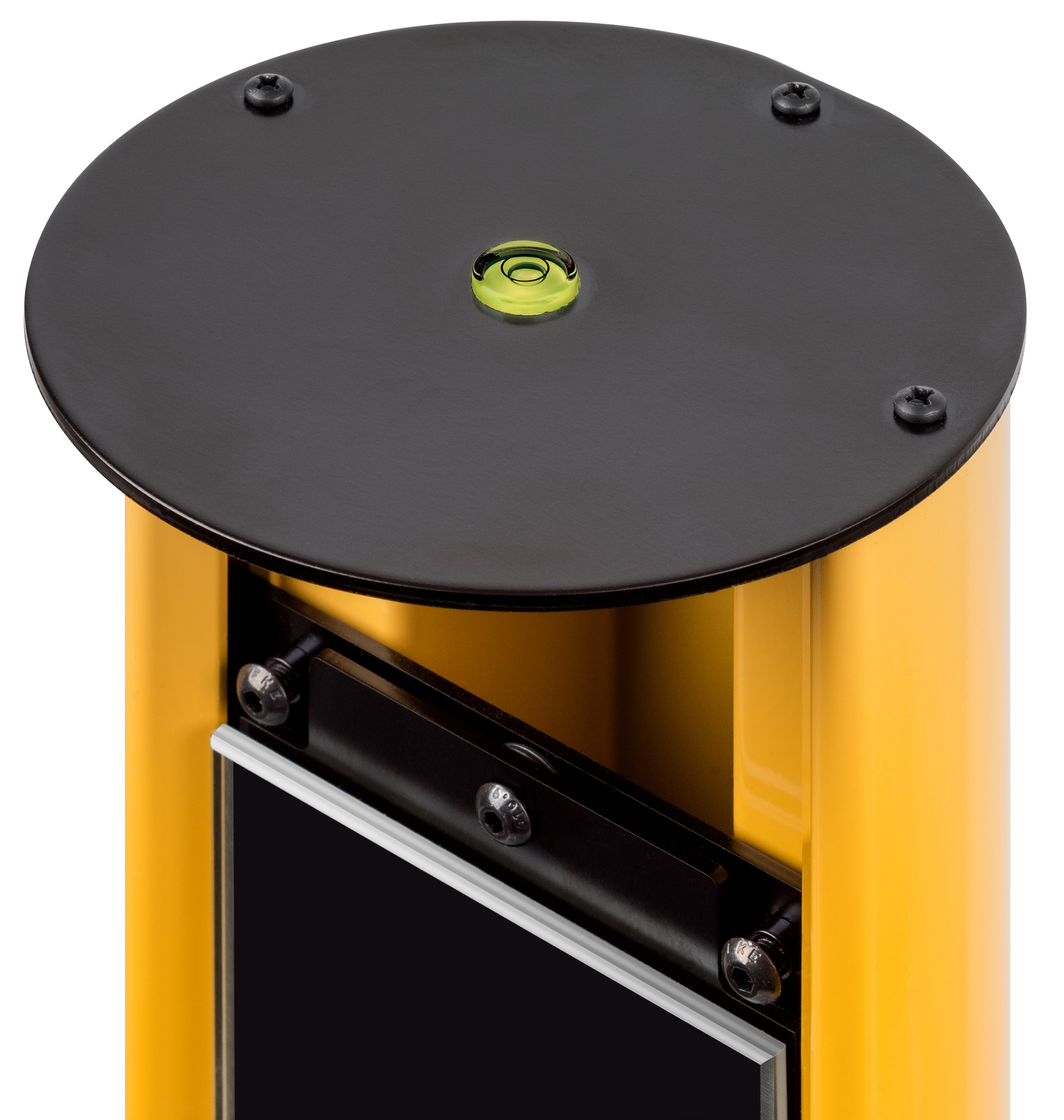

커버에 있는 원형 레벨
Technical data
기계적 가치 및 환경
| 미러의 수량 | 1 |
| 높이 | 1200 |
| 보호 필드의 높이 | 910 mm (빔 3개, 760 mm 및 910 mm) |
| 보관 온도 | -25 ... 70 °C |
| 광출력 감소 | 15 % |
