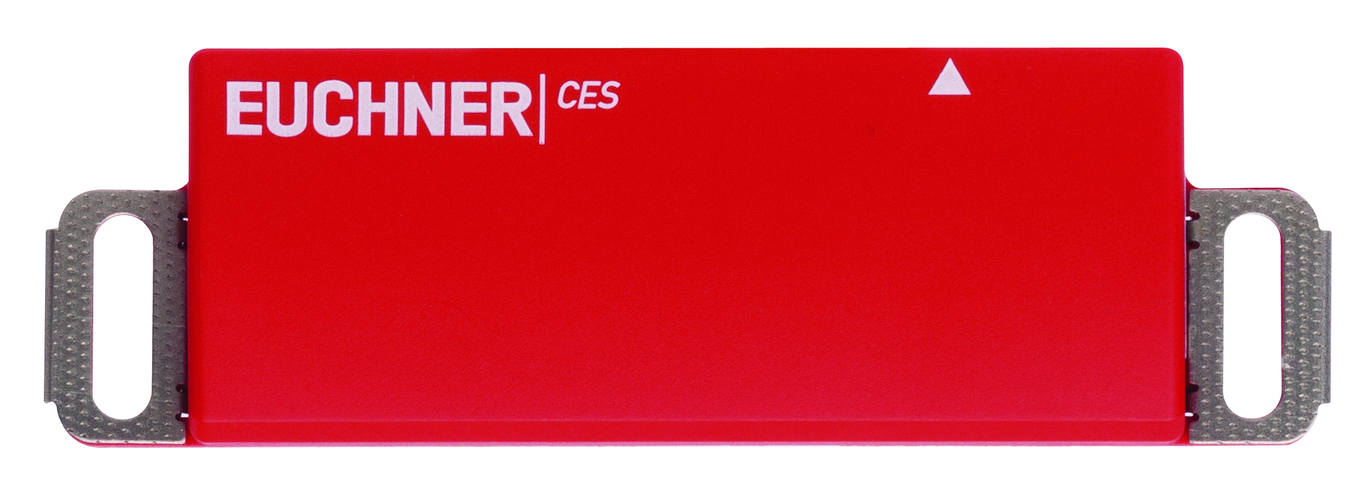

CES-A-BLN-R...触发块
- 95 x 30 mm方形设计
- 右开式门铰链
- 加固板
- 内附两个M4x14安全螺钉

Description

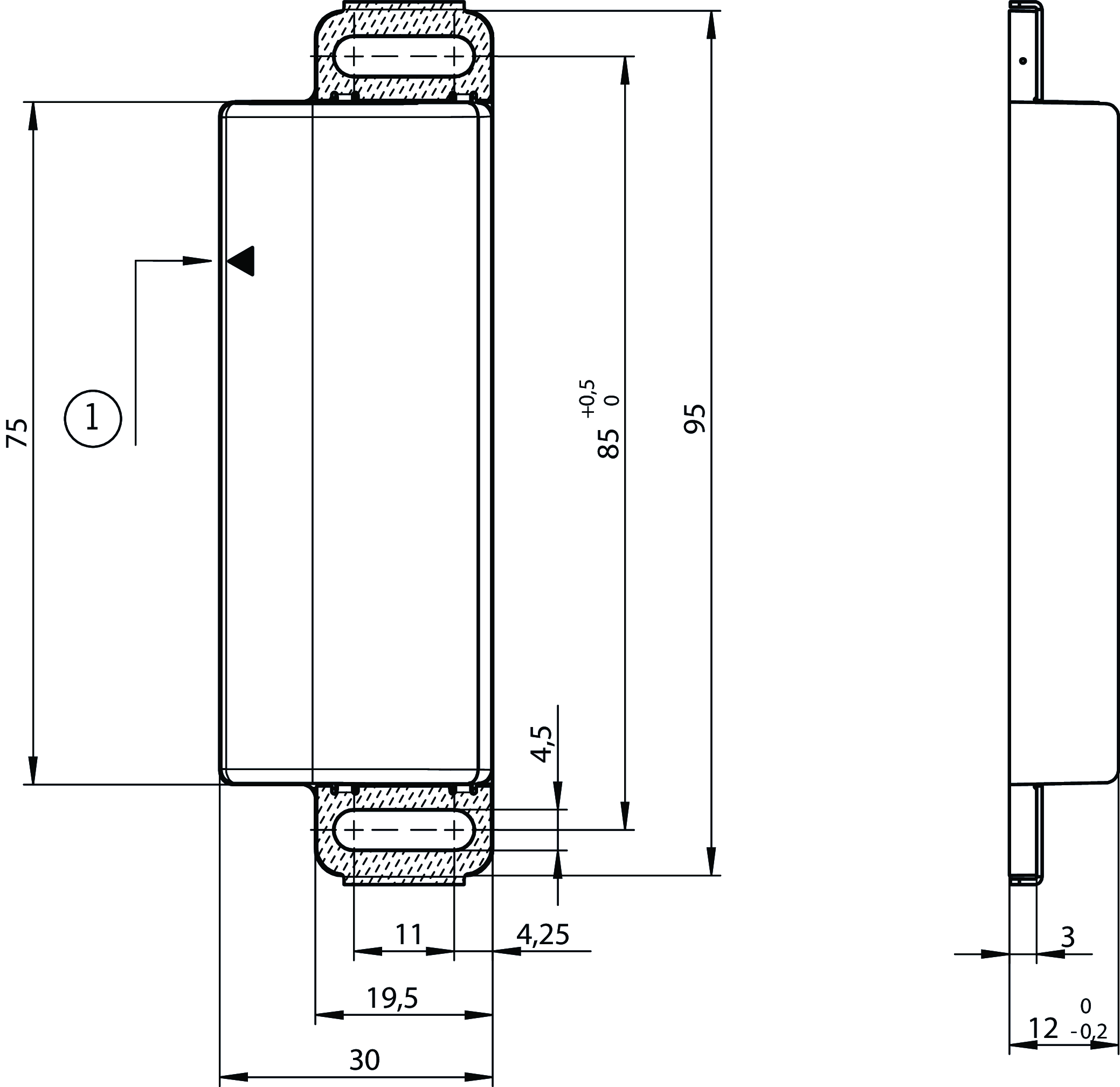

尺寸图

| 1 | 工作面 |
Technical data
审批

电气连接值
| 电源 | 通过读头感应 |
机械值和环境
| 拧紧扭矩 | |
| 固定螺钉 | max. 1 Nm |
| 存储温度 | -40 ... 70 °C |
| 保护等级 | IP67/IP69K |
| 环境温度 | -40 ... 70 °C |
| 材料 | |
| 壳体 | 塑料(PBT) |
Accessories
Downloads
Single Documents
Other Documents
批准和证书
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,2 MB
CAD data
Ordering data
| Ordernumber | 100776 |
| Item designation | CES-A-BLN-R2-100776 |
| Gross weight | 0,04kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
