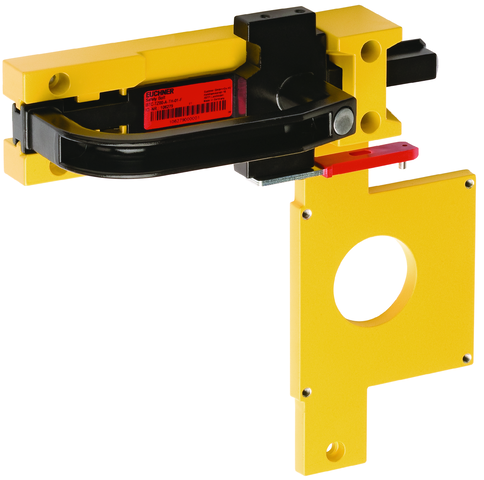

BTC-TZ00-C-TH-00-X (Order no. 106280)

BTC-TZ00... 系列门闩，无用于TZ系列安全开关的应急逃生解锁装置

  • 铝质门闩
  • 适用于左开式铰链门
  • 可通过挂锁锁止在开启位置
  • 内附触发块
BTC-TZ00-C-TH-00-X (Order no. 106280)

Description

优势

  • 结构坚固
  • 通过螺钉连接方式，易于安装到标准铝合金框架和机器外盖上
  • 显眼的黄色，易于辨识
  • 无需对安全门进行额外的操作

注意

  • 需单独订购安全开关
尺寸示意图
尺寸示意图

尺寸图

尺寸图
1开启
2安全门框架(40x40)
3左开式铰链门

Technical data

机械值和环境

接近方向 C
可安装的安全开关数 1
应急逃生解锁装置 无
存储温度 -25 ... 70 °C
材料
底板 铝质
手柄 铝质
开关支架 铝质
导向带 铝质

杂项

机械制动装置 无

Downloads

Single Documents

Doc. no.
Version
Language
Size
Doc. no. 2530033
Safety Information for Bolts
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
04-03/24
Language
Size
0,2 MB
Doc. no. 2530033
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
04-03/24
Language
Size
0,2 MB
Doc. no. 2530033
Informação de segurança referente ao trinco
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Informazioni sulla sicurezza per il chiavistello
Doc. no.
2530033
Version
04-03/24
Language
Size
0,1 MB
Doc. no. 2530033
Bezpečnostní informace pro petlice
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Tolózár biztonsági információi
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Информация за безопасност за ригели
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sikkerhedsinformation for bolte
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Ohutusalane teave riivistuste kohta
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Turvallisuustietoja salvalle
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Πληροφορίες ασφαλείας για μάνδαλα
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sigurnosne informacije za brave
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Aizbīdņu drošības informācija
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Saugos informacija skląsčiui
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Veiligheidsinformatie voor grendels
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Sikkerhetsinformasjon for låser
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Informacje o bezpieczeństwie dotyczące użytkowania zasuw
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Säkerhetsinformation för regeln
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Varnostne informacije o zapahu
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Bezpečnostná informácia pre závory
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sürgüler için güvenlik bilgisi
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Informații de siguranță privind zăvoarele
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB

Other Documents

Ordering data

Ordernumber 106280
Item designation BTC-TZ00-C-TH-00-X
Gross weight 1,338kg
Customs tariff number 83014090000
