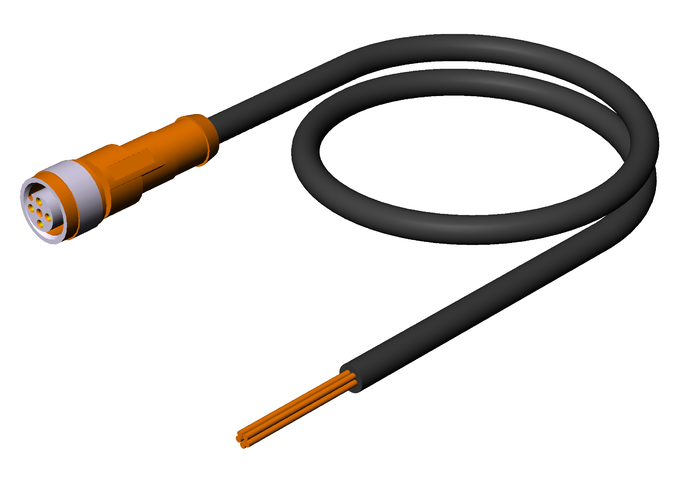

配有5针M12圆形接插头（直头）的接配线电缆，20 m
- 5针M12母头
- 直插头
- PUR电缆
- 20 m长电缆
- 配有飞线延长线
Description

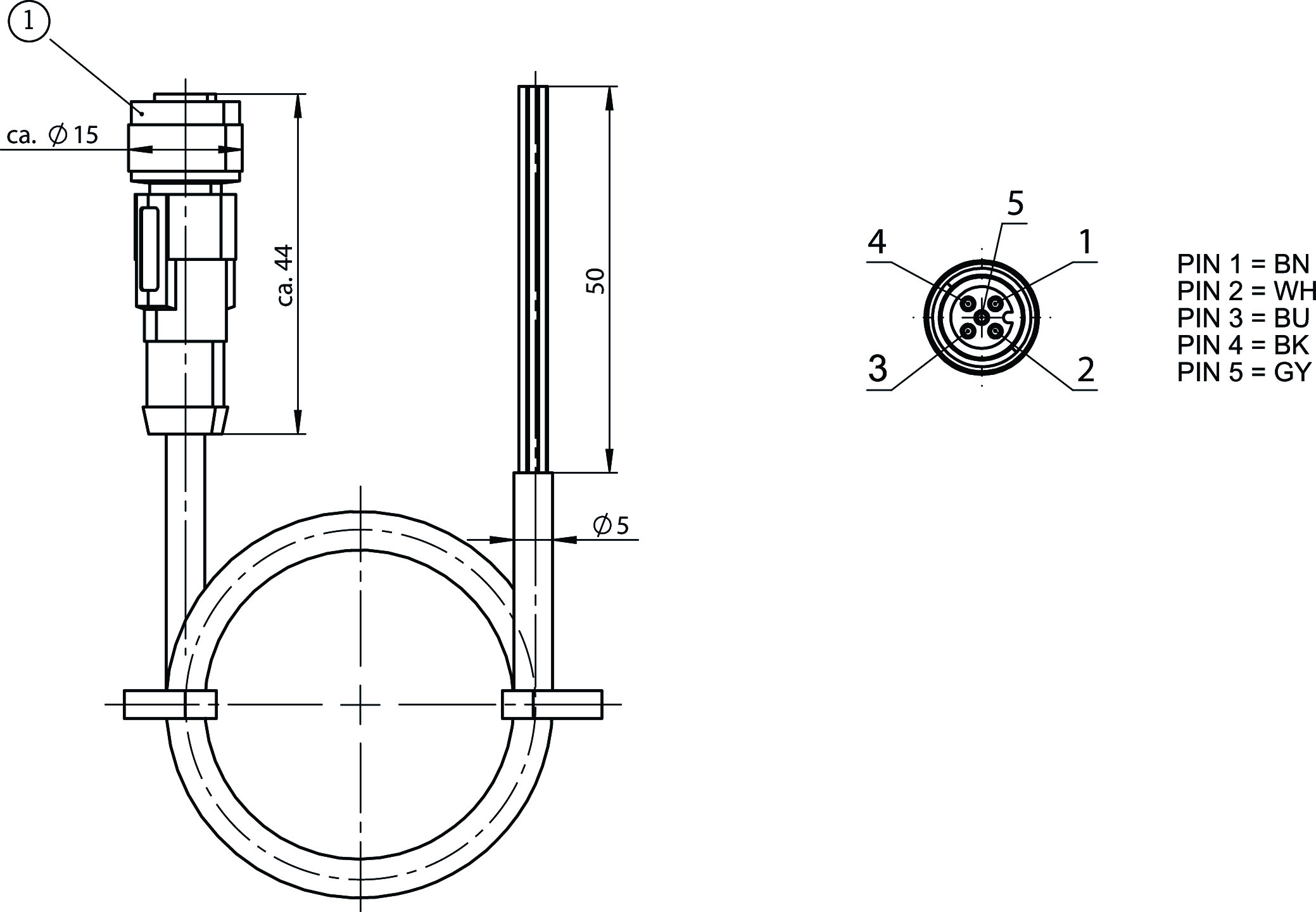

尺寸图
| 1 | 5针M12x1母头 |
Technical data
审批
电气连接值
| 额定电压 | |
| DC | 60 V |
| 额定电流 | |
| 25°C时 | 4 A |
| 连接1 | |
| 污染程度，符合EN 60664-1 | 3 |
机械值和环境
| 导线截面积 | 0.34 mm² |
| 导线数 | 5 |
| 动态弯曲半径 | 10 x电缆直径 |
| 静态弯曲半径 | 5 x电缆直径 |
| 点火行为 | 阻燃性 |
| 无卤素 | 是 (符合DIN VDE 0472第815部分的要求) |
| 存储温度 | -25 ... 80 °C |
| 电缆类型 | 直型 |
| 电缆直径 | |
| 约 | 5 mm |
| 电缆长度 | 20 m |
| 护套颜色 | 黑 |
| 适用于拖链应用场合 | 是 |
| 电缆环境温度（动态） | -25 ... 80 °C |
| 电缆环境温度（静态） | -25 ... 80 °C |
| 材料 | |
| 护套 | PUR |
| 连接2 | |
| 导线端 | 护套已剥除 |
| 连接类型 | 飞线 |
| 连接1 | |
| 连接类型 | M12x1圆形接插头 |
| 连接类型 | 母插头 |
| 拧紧扭矩 | 0.5 Nm |
| 电缆引出口 | 直型 |
| 插针数 | 5 |
| 保护等级 | IP67 (处于插入状态) |
| 插头锁 | 螺钉连接 |
| 插入周期 | 100 |
| 材料 | |
| 插头锁 | 铜锌/镍 |
| 插头壳体 | TPU |
Downloads
Single Documents
符合性声明
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC20001578
Version
Language
Size
0,2 MB
说明
Safety information
Doc. no.
Version
Language
Size
Safety information
Information de sécurité
Información de seguridad
Sicherheitsinformation
Informação de segurança
Informazioni sulla sicurezza
Bezpečnostní informace
Biztonsági információ
Информация за безопасност
Sikkerhedsinformation
Ohutusalane teave
Turvallisuustiedot
Πληροφορία ασφαλείας
Sigurnosne informacije
Informācija par drošību
Saugos informacija
Veiligheidsinformatie
Sikkerhetsinformasjon
Informacje o bezpieczeństwie
Säkerhetsinformation
Varnostne informacije
Bezpečnostné informácie
Güvenlik bilgisi
Informații privind siguranța
Information de sécurité
Información de seguridad
Sicherheitsinformation
Informação de segurança
Informazioni sulla sicurezza
Bezpečnostní informace
Biztonsági információ
Информация за безопасност
Sikkerhedsinformation
Ohutusalane teave
Turvallisuustiedot
Πληροφορία ασφαλείας
Sigurnosne informacije
Informācija par drošību
Saugos informacija
Veiligheidsinformatie
Sikkerhetsinformasjon
Informacje o bezpieczeństwie
Säkerhetsinformation
Varnostne informacije
Bezpečnostné informácie
Güvenlik bilgisi
Informații privind siguranța
Doc. no.
MAN20001593
Version
01-10/22
Language
Size
0,6 MB
Sicherheitsinformation
Doc. no.
MAN20001593
Version
01-10/22
Language
Size
0,2 MB
Other Documents
批准和证书
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,4 MB
c UL us
Doc. no.
Version
Language
Size
0,2 MB
销售文件
Barreras fotoeléctricas y cortinas fotoeléctricas LCA
Doc. no.
Version
Language
Size
Barreras fotoeléctricas y cortinas fotoeléctricas LCA
Doc. no.
157087
Version
04-02/21
Language
Size
9,5 MB
Barrières photoélectriques et rideaux lumineux LCA
Doc. no.
Version
Language
Size
Barrières photoélectriques et rideaux lumineux LCA
Doc. no.
157086
Version
04-02/21
Language
Size
9,5 MB
Lichtgitter und Lichtvorhänge LCA
Doc. no.
Version
Language
Size
Lichtgitter und Lichtvorhänge LCA
Doc. no.
157084
Version
04-02/21
Language
Size
9,6 MB
Light grids and light curtains LCA
Doc. no.
Version
Language
Size
Light grids and light curtains LCA
Doc. no.
157085
Version
04-02/21
Language
Size
9,4 MB
Multifunctional Gate Box MGBS Slimline
Doc. no.
Version
Language
Size
Multifunctional Gate Box MGBS Slimline
Doc. no.
163691
Version
03-03/20
Language
Size
13,3 MB
Multifunctional Gate Box MGBS Slimline
Doc. no.
163692
Version
03-03/20
Language
Size
13,4 MB
Multifunctional Gate Box MGBS Slimline
Doc. no.
163693
Version
03-03/20
Language
Size
13,4 MB
Multifunctional Gate Box MGBS Slimline
Doc. no.
163690
Version
03-03/20
Language
Size
13,3 MB
製品/マルチファンクション-ゲート-ボックス- MGBS Slimline
Doc. no.
164508
Version
03-03/20
Language
Size
4,8 MB
Transponder-coded safety systems with external evaluation
Doc. no.
Version
Language
Size
Transponder-coded safety systems with external evaluation
Doc. no.
127597
Version
03-08/21
Language
Size
20,4 MB
光栅和光幕LCA
Doc. no.
Version
Language
Size
光栅和光幕LCA
Doc. no.
159698
Version
04-02/21
Language
Size
9,6 MB
光栅和光幕LCA
Doc. no.
159698
Version
03-03/18
Language
Size
9,6 MB
Light grids and light curtains LCA
Doc. no.
157085
Version
03-03/18
Language
Size
2,4 MB
Barrières photoélectriques et rideaux lumineux LCA
Doc. no.
157086
Version
03-03/18
Language
Size
2,4 MB
Barreras fotoeléctricas y cortinas fotoeléctricas LCA
Doc. no.
157087
Version
03-03/18
Language
Size
2,4 MB
Lichtgitter und Lichtvorhänge LCA
Doc. no.
157084
Version
03-03/18
Language
Size
2,5 MB
Ordering data
| Ordernumber | 113682 |
| Item designation | C-M12F05-05X034PU20,0-MA-113682 |
| Gross weight | 0,708kg |
| Customs tariff number | 85444290900 |
| ECLASS | 27-06-03-04 Appliance cord (data cable) |
